PVDF 3mm Acm Aluminum Composite Materials Aluminium Composite Wall Panel for Office Building

Product Description

Welcome to Guangzhou GEESHINE building Materials Co., LtdGEESHINE is a subsidiary of Linyi XINGDA Aluminum Plastic Decorative Material Co., Ltd (Short as XINGDA). XINGDA is a professional manufacturer of the aluminum composite panel and prepainted aluminum coils.
Company Scale: After 18 years' development from 2003, XINGDA now has 9 production lines, more than 200 experienced workers, 20 senior engineers, and an 85,000 square meters' plant. Now company start to invest in a color coated aluminum coils plant, tracking more widely world market
Company Certificates: Company's products have passed a series of test by Intertek, XMTEST, CTC and get certificate of ISO9001-2008 / ISO4001-2014 / CE / SGS / ASTM / SGS / ROSH / SONCAP / OHSAS18000 / CNAS.
Company Honor: As the earliest and most professional ACP manufacturer in China, the Company is the one of the units drafting China national standards of Aluminum-plastic Composite Panel. XINGDA is also a council member of China Aluminum-plastic Composite Material, a Branch of China Building Material Council.
GEEHISNE Products Range

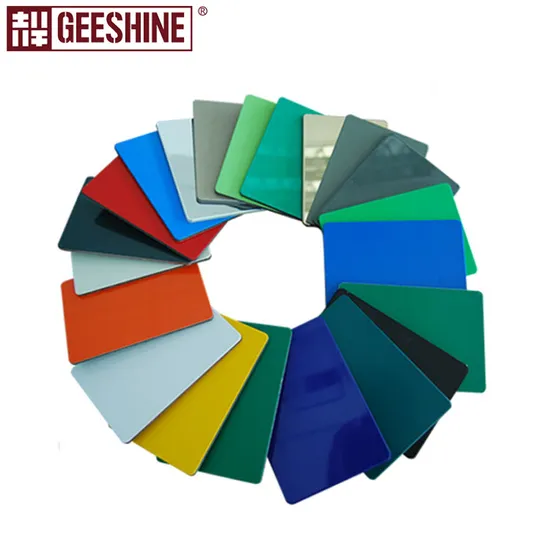

GEESHINE Aluminum Composite Panels Specifications
Panel Width	1220/1250/1500/1550mm or customized.
Panel Length	2440mm,3050mm,4050mm,max 11800mm(no limited as per loading container)
Panel thickness	2mm/3mm/4mm/5mm/6mm
Aluminum Alloy	AA1100,AA3003,AA5005 series
Glossy	40%-60%
Aluminum coil thickness	0.08mm, 0.10mm,0.15mm,0.18mm,0.21mm,0.30mm,0.40mm,0.40mm,0.5mm
Color	GEESHINE color chart, RAL, PANTONE or customers' requirement
Surface treatment	PE/PVDF/Nano/FEVE coating
Core material	non-toxic low density polyethylene or firepoof core
Back coating	primer coating
Thickness of coating	16um to 18um
Coating flexibity	3T
Coating adhesive	1 grade
Peeling Strength	5N/mm
Coefficient of Linear Thermal Expansion	2.4mm/m
Base material	high strength aluminum alloy sheet
Packing	FCL In bulk,LCL In wooden pallet package or according to customers' requirement
Delivery time	10-20 working days after the deposit

Product Features1)Super peeling strength The strength of polymer film, the peeling strength of aluminum and LDPE: exterior wall>7N/mm Interior wall>5N/mm 2)Light weight : only 5.6kgs/sqm. It will save the labor cost during carrying; 3)Easy forming and processing allow for innovative design with increased rigidity and durability; 4)Super weatherability 5)Excellent fire protection performance:the core is the flame retardant PE material and the two sides are the aluminum layer which extremely difficult to burn. 6)Easy maintenance and with colorful cover 7)Thermal resistance and acoustic insulation
Our Factory View
@ Established in 2004, more than 200 workers, 20 senior engineers, 85000 square meters workshop and 9 high speed production lines. @ Passed ISO9001-2000, ISO14001, SGS, CE, SONCAP, EU Protocol, Etc. @ Supply OEM/ODM Manufacturing @ One of largest professional manufacturer of aluminum composite panel @ One Hour's Drive from QingDao port
Application
Package
FCL in bulk; LCL in wooden pallet package or according to customers' requirement
Delivery time: 10-20 days after received deposit
FAQ Q1: Are you trading company or manufacturer ?
A: We are manufacturer. Q2.Can I get a sample for free?
A: Yes,the free sample is available with freight collect or prepaid.
Q3.Can you provide the OEM or ODM service?
A:Yes,all kind of the products can be customized according to your requirements.
Q4. How long time for your aluminum composite panel warranty?
A: PVDF coating acp aluminum composite panel is 20 years warranty for the outdoor usage;
PE coating acp is about 10 years with indoor usage;
Q5.What is your MOQ for the aluminum composite panel?
a) Standard size: 500 sq.m./color; special size: 1000 sq.m./color
b) Special colors: 1000 sq.m.
Q6.How about your delivery time?
a) Standard size & GEESHINE's standard colors-normally within 10 days' lead time;
b) Standard size & custom colors-normally within 15 days' lead time;
c) Non-standard/special size-normally within 20 days' lead time; Q7: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. Sight LC acceptable.
