US$17.00
|
100 Pieces
(MOQ)
|
Basic Info.
Transmission
Mechanical Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
1.0~1.5m³
Certification
CE, ISO9001: 2000
Technology
Lost Wax Casting/Forging
Transport Package
Standard Export Wooden Package
Production Capacity
700tons/Month
Product Description
Material Specification
Material:
| Carbon steel, Alloy steel,etc, such as T1,T2,T3,T4.with casting/forging process
|
Machine type:
| Excavator, Loader,Bulldozer,etc.
|
Brands:
| TIG / SAR
|
Heatment;treatmentt:
| Quenching and tempering treatment
|
Hardness:
| Teeth : HRC48-52 ,Impact value >=17J
Adapters : HRC34-38 ,Impact value >=25J
|
Work condition:
| With excellent elongation and tensile strength,
suitable for many different hard working conditions.
|

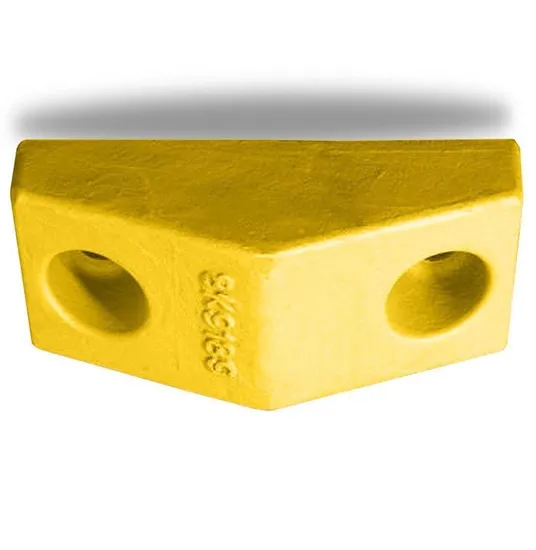

Catstyle style rock tamping foot for an 815C; it is 3" in height, 2.75" in width and 6.25" in length; takes a 7K6908 base.
Quality aftermarket G.E.T. (bucket teeth) for CA-T, J-C-B, Bob-cat, Ca-se, Ko-ma-tsu, Ku-bo-ta and many others including manufacturers for all your backhoe, loader, skid steer, grader, scraper and excavator bucket tooth (teeth) needs.
STARKEA Products are Excavator bucket teeth&adapter, Grader Blades,excavator undercarriage parts, excavator buckets, slewing bearings, high strength fastners, pin&retainer, bolts&nuts, ect and customized Investment casting, die casting, sand casting, Stamping and machining parts with kinds of materials like carbon steel,Stainless steel,alloy steel, grey iron ,ductile iron ,aluminum.copper ect.
Mechanical Property
| Material | Hardness | V-Norch | Tensile | Elongation | Yeild |
| T1 | 47-52HRC | akv>=16J | >=1499Mpa | >=3% | >=1040N/mm2 |
| T2 | 48-52HRC | akv>=20J | >=1500Mpa | >=4% | >=1100N/mm2 |
| T3 | 48-52HRC | akv>=20J | >=1550Mpa | >=5% | >=1100N/mm2 |
For general purpose we recommend Grade 2 which is both strong and wear long. For Grade 1 material, we reduce the alloy composition; therefore the wear life is 2/3 of Grade 2. And our Grade 3 is best material which wears 1.3 times of Grade 2.
Bucket Teeth Catalogue
| PART NO. | WEIGHT (KG) | DESCIPTION | FAMILY/MODEL |
| 135-9300/4T2203RP | 9 | TIP HEAVY DUTY | J300 |
| 135-9400/7T3403RP | 17 | TIP HEAVY DUTY | J400 |
| 135-9600 | 54 | TIP HEAVY DUTY | J600 |
| 135-9800 | 94.6 | TIP HEAVY DUTY | J800 |
| 138-6451/9W1453RP | 23 | TIP HEAVY DUTY | J460 |
| 168-1451 | 11 | TIP HEAVY DUTY | J460 |
| 144-1358/4T2353RP | 10.3 | TIP HEAVY DUTY | J350 |
| 144-1358 | 11 | TIP HEAVY DUTY | J350 |
| 138-6552/9W1553RP | 29 | TIP HEAVY DUTY | J550 |
| 138-6552 | 30.5 | TIP HEAVY DUTY | J550 |
| 1U0257 | 7.7 | BOLT-ON ADAPTER | J250 |
| 1U0307 | 11 | BOLT-ON ADAPTER | J300 |
| 1U1254 | 5.3 | WELD-ON ADAPTER | J250 |
| 1U1304 | 7.6 | WELD-ON ADAPTER | J300 |
| 1U1350 | 9.8 | WELD-ON ADAPTER | J350 |
| 1U1354 | 15 | WELD-ON ADAPTER | J350 |
| 1U1357 | 17.8 | WELD-ON ADAPTER | J350 |
| 1U1454 | 17.3 | WELD-ON ADAPTER | J450 |
| 1U1857 | 10 | UNIT TOOTH BOLT ON | J250 |
| 1U1858 | 15.1 | UNIT TOOTH BOLT ON | J300 |
| 1U1859 | 15.1 | UNIT TOOTH BOLT ON | J300 |
| 1U1877 | 12.4 | UNIT TOOTH BOLT ON | J300 |
| 1U1878 | 23 | UNIT TOOTH BOLT ON | J300 |
| 1U1879 | 23 | UNIT TOOTH BOLT ON | J300 |
| 1U1888 | 29.5 | UNIT TOOTH BOLT ON | J350 |
| 1U1889 | 29.5 | UNIT TOOTH BOLT ON | J350 |
| 1U2208 | 3.8 | CORNER ADAPTER LH | J200 |
| 1U2209 | 3.8 | CORNER ADAPTER RH | J200 |
| 1U3201 | 1.45 | TEETH SHORT | J200 |
| 1U3202 | 1.35 | TEETH STANDARD LONG | J200 |
| 1U3202P | 1.4 | TEETH ROCK | J200 |
| 1U3202TL/9W8209 | 1.35 | TEETH TIGER | J200 |
| 1U3202WTL/135-8208 | 1.35 | TEETH TWIN TIGER | J200 |
| 1U3209 | 1.25 | TEETH PENETRATION | J200 |
| 1U3251 | 2.7 | TEETH ROCK | J250 |
| 1U3252 | 2.9 | TEETH STANDARD LONG | J250 |
| 1U3252TL/9W8259 | 2.7 | TEETH TIGER | J250 |
| 1U3252WTL/135-8258 | 3.5 | TEETH TWIN TIGER | J250 |
| 1U3252RC | 3.5 | TEETH ROCK CHISEL | J250 |
| 1U3301 | 4 | TEETH SHORT | J300 |
| 1U3302 | 4.3 | TEETH STANDARD LONG | J300 |
| 1U3302 | 4.7 | TEETH STANDARD LONG | J300 |
| 1U3302TL/9W8309 | 4.3 | TEETH TIGER | J300 |
| 1U3302WTL/135-9308 | 4.8 | TEETH TWIN TIGER | J300 |
| 1U3302RC | 4.9 | TEETH ROCK | J300 |
| 1U3302RC-2 | 4.8 | TEETH ROCK | J300 |
| 1U3302RCL | 4.95 | TEETH FISH SCALE | J300 |
| 1U3302R/9J4302 | 4.5 | TEETH ROCK | J300 |
| 1U3302SYL | 5.2 | TEETH SYL | J300 |
| 1U3351 | 5.5 | TEETH SHORT | J350 |
| 1U3352 | 5.6 | TEETH STANDARD LONG | J350 |
| 1U3352 | 5.8 | TEETH STANDARD LONG | J350 |
| 1U3352 | 6 | TEETH STANDARD LONG | J350 |
| 1U3352R/9J4352 | 6 | TEETH ROCK | J350 |
| 1U3352TL/9W2359 | 6 | TEETH TIGER | J350 |
| 1U3352WTL | 7 | TEETH TWIN TIGER | J350 |
| 1U3352RC | 7 | TEETH ROCK CHISEL | J350 |
| 1U3352RC | 8.2 | TEETH ROCK | J350 |
| 1U3352RCK | 6.5 | TEETH ROCK | J350 |
| 1U3352SYL | 7.8 | TEETH SYL | J350 |
| 1U3452 | 12.65 | TEETH STANDARD LONG | J460 |
| 1U3452SYL | 11.1 | TEETH SYL | J460 |
| 1U3452TL/9W8452TL/7T8459 | 13.5 | TEETH TIGER | J460 |
| 1U3452C | 15 | TEETH ROCK TEETH | J460 |
| 1U3452RC | 13.4 | TEETH ROCK | J460 |
| 1U3452RC | 15 | TEETH ROCK | J460 |
| 1U3552TL | 22.5 | TEETH | J550 |
| 1U3552RCL | 22.7 | TEETH FISH SCALE | J550 |
| 1U3552WT/9W8552WTL/138-6558 | 18 | TEETH TWIN TIGER | J550 |
| 2D5572/6Y5230 | 1.3 | SCARIFIER TEETH | |
| 2V7053 | 3.46 | COMPACTOR | |
| 3G0169 | 4 | ADAPTER | J250 |
| 3G3357 | 18 | BOLT-ON ADAPTER | J350 |
| 3G4258 | 10 | CORNER ADAPTER | J250 |
| 3G4259 | 10 | CORNER ADAPTER | J250 |
| 3G4307/4T4307 | 12.7 | ADAPTER | J350 |
| 3G4308 | 15.5 | CORNER ADAPTER | J300 |
| 3G4309 | 15.5 | CORNER ADAPTER | J300 |
| 3G5307 | 14 | BOLT-ON ADAPTER | J300 |
| 3G5358 | 24.3 | CORNER ADAPTER | J350 |
| 3G5359 | 24.3 | CORNER ADAPTER | J350 |
| 9W1304/3G6304 | 7.8 | WELD-ON ADAPTER | J300 |
| 3G6305 | 7.5 | WELD-ON LEFT ADAPTER | J300 |
| 3G6306 | 7.5 | WELD-ON RIGHT ADAPTER | J300 |
| 3G9307 | 14 | BOLT-ON ADAPTER | J300 |
| 3G8308 | 17 | CORNER ADAPTER | J300 |
| 3G8309 | 17 | CORNER ADAPTER | J300 |
| 3G8319 | 14.3 | END BIT | |
| 3G8320 | 14.3 | END BIT | |
| 3G8354 | 9 | WELD-ON ADAPTER | J350 |
| 3G8354/8J4310 | 9 | WELD-ON ADAPTER | J350 |
| 6I6354 | 9 | WELD-ON ADAPTER | J350 |
| 3G8355/6I6355 | 9.1 | WELD-ON ADAPTER | J350 |
| 3G8356/6I6356 | 9.1 | WELD-ON ADAPTER | J350 |
| 4T1204 | 2.08 | WELD-ON ADAPTER | J200 |
| 9J4203/4T2203 | 1.8 | TEETH ABRASION | J200 |
| 4T2253 | 3.5 | TEETH ABRASION | J250 |
| 4T2303 | 5.3 | TEETH ABRASION | J300 |
| 4T4307 | 12.7 | BOLT-ON ADAPTER | J300 |
| 4T4501/4T5501 | 25 | RIPPER TEETH | D9L,D10,D10N,D11,D11N |
| 4T5503 | 29.3 | RIPPER TEETH | D9L,D10,D10N,D11,D11N |
| 4T5502/4T4502 | 28 | RIPPER TEETH | D9L,D10,D10N,D11,D11N |
| 4T6694 | 10.2 | SEGMENT | |
| 4T4702RC | 50 | TEETH ROCK | J700 |
| 4T4704 | 72 | WELD-ON ADAPTER | J700 |
| 4K6936 | 1.6 | TEETH | 23 |
| 5B6251 | 5.5 | RIPPER SHANK | |
| 5V4311 | 9.5 | RIPPER SHANK | |
| 6I6354 | 9.2 | WELD-ON ADAPTER | J350 |
| 6I6354 | 9 | WELD-ON ADAPTER | J350 |
| 6I6354 | 9.3 | WELD-ON ADAPTER | J350 |
| 6I6404 | 12.8 | WELD-ON ADAPTER | J400 |
| 6I6404 | 13 | WELD-ON ADAPTER | J400 |
| 6I6405 | 12.3 | WELD-ON ADAPTER | J400 |
| 6I6406 | 12.3 | WELD-ON ADAPTER | J400 |
| 6I6464/8E6464 | 20.5 | WELD-ON ADAPTER | J460 |
| 6I6464 | 20.3 | WELD-ON ADAPTER | J460 |
| 6I6464 | 21 | WELD-ON ADAPTER | J460 |
| 6I6554/1U1553 | 34 | WELD-ON ADAPTER | J550 |
| 6I6554 | 34 | WELD-ON ADAPTER | J550 |
| 6I6602 | 34 | TEETH STANDARD LONG | J600 |
| 6I6602RC | 39 | TEETH ROCK | J600 |
| 6I6604 | 54 | WELD-ON ADAPTER | J600 |
| 6Y0309 | 5.2 | RIPPER TEETH | D4, 941, 951,955, 963,12, 14, 130, 140,143H, 160H |
| 6Y0359/6Y0352 | 11 | RIPPER TEETH | 16,973, 977,D5, D6,D7,983, |
| 6Y0469/1U1567 | 23.5 | BOLT-ON MONOBLOCK TEETH | J350 |
| 6Y2553 | 34 | TEETH HEAVY DUTY ABRASION | J550 |
| 6Y3222 | 3.4 | TEETH STANDARD LONG | J225 |
| 6Y3222RC | 2.8 | TEETH ROCK | J225 |
| 6Y3224 | 3 | WELD-ON ADAPTER | J225 |
| 6Y3254 | 3.8 | WELD-ON ADAPTER | J250 |
| 6Y5230 | 1.3 | SCARIFIER TEETH | 12, 14, 112,130, 140 |
| 6Y7409 | 8.8 | TEETH PENETRATION | J400 |
| 6Y8229 | 2 | TEETH PENETRATION | J225 |
| 6Y6335/9W1879/135-8203 | 3.3 | BOLT-ON MONOBLOCK TEETH | J200 |
| 7I7609 | 30 | TEETH PENETRATION | J600 |
| 7K6908 | 6.7 | | |
| 7T3401 | 8.2 | TEETH SHORT | J400 |
| 7T3402 | 9 | TEETH STANDARD LONG | J400 |
| 7T3402 | 10.5 | TEETH STANDARD LONG | J400 |
| 7T3409TL/6Y5409 | 9.5 | TEETH TIGER | J400 |
| 7T3402WTL/135-9408 | 10.4 | TEETH TWIN TIGER | J400 |
| 7T3402RC | 9.5 | TEETH ROCK CHISEL | J400 |
| 7T3402RC | 9.88 | TEETH ROCK CHISEL | J400 |
| 7T3403 | 13.5 | TEETH ABRASION PENETRATION | J400 |
| 227-3665 | 5 | SIDE CUTTER | D424 . |
| 227-3666 | 5 | SIDE CUTTER | D424 . |
| 112-2487/096-4747 | 11.2 | SIDE CUTTER | E200/E320 |
| 112-2488/096-4748 | 11.2 | SIDE CUTTER | E200/E320 |
| 7Y0358 | 18.9 | SIDE CUTTER | E330 |
| 7Y0359 | 18.9 | SIDE CUTTER | E330 |
| 8E1637 | 16 | UNIT TOOTH BOLT ON | J300 |
| 8E4222 | 3.1 | TEETH HEAVY DUTY LONG | J225 |
| 8E0464 | 23.5 | ADAPTER | J460 |
| 8E4402 | 11.5 | TEETH HEAVY DUTY LONG | J400 |
| 8E6464/6I6464 | 20.6 | WELD-ON ADAPTER | J460 |
| 8E5308 | 17.6 | CORNER ADAPTER | J300 |
| 8E5309 | 17.6 | CORNER ADAPTER | J300 |
| 8E5358 | 23 | CORNER ADAPTER | J350 |
| 8E5359 | 23 | CORNER ADAPTER | J350 |
| 8E8418 | 76 | RIPPER SHANK | D8,D9 |
| 8J7525 | 1.4 | WELD-ON ADAPTER | J200 |
| 8J7525 | 1.5 | WELD-ON ADAPTER | J200 |
| 9F5124 | 5.4 | SCARIFIER SHANK | 12, 14, 112,130, 140 |
| 9J4207 | 3.2 | BOLT-ON ADAPTER | J200 |
| 9J4259 | 2.5 | TEETH PENETRATION | J250 |
| 9J4309 | 3.6 | TEETH PENETRATION | J300 |
| 9J4359 | 5.5 | TEETH PENETRATION | J350 |
| 9J6586 | 24 | RIPPER SHANK-STRAIGHT | D4, 941, 951,955, 963,12, 14, |
| 9J8910/6Y0309 | 5.2 | RIPPER TEETH | D4, 941, 951,955, 963,12, 14, |
| 9J8920/6Y0359 | 11 | RIPPER TEETH PENETRATION LONG | 16,973, 977,D5, D6,D7,983, |
| 9J8929 | 8 | WELD-ON ADAPTER | J300 |
| 9N4252 | 4.2 | TEETH HEAVY DUTY LONG | J250 |
| 9N4253 | 4.55 | TEETH HEAVY DUTY ABRASION | J250 |
| 9N4302 | 5.5 | TEETH HEAVY DUTY LONG | J300 |
| 9N4303 | 7.2 | TEETH HEAVY DUTY ABRASION | J300 |
| 9N4352 | 8.6 | TEETH HEAVY DUTY ABRASION | J350 |
| 9N4353 | 11 | TEETH HEAVY DUTY ABRASION | J350 |
| 9N4452 | 17.5 | TEETH HEAVY DUTY LONG | J460 |
| 9N4453 | 21.4 | TEETH HEAVY DUTY ABRASION | J460 |
| 9N4552 | 26 | TEETH HEAVY DUTY LONG | J550 |
| 9W2451 | 13.8 | RIPPER TEETH | D8K,D8L,D8N,D9H,D9N |
| 9W2451 | 15.7 | RIPPER TEETH | D8K,D8L,D8N,D9H,D9N |
| 9W2452 | 17 | RIPPER TEETH | D8K,D8L,D8N,D9H,D9N |
| 9W4551 | 46.5 | RIPPER TEETH | D11SS D11DR |
| 9W8451 | 11.5 | TEETH SHORT | J460 |
| 9W8452 | 12.4 | TEETH STANDARD LONG | J460 |
| 9W8452R/9J4452 | 11.5 | TEETH ROCK | J460 |
| 9W8452RC/1U3452RC | 15 | TEETH ROCK CHISEL | J460 |
| 9W8452T/1U3452TL/7T8459 | 13.5 | TEETH TIGER | J460 |
| 9W8452WTL/138-6458 | 15 | TEETH TWIN TIGER | J460 |
| 9W8459 | 10 | TEETH PENETRATION | J460 |
| 9W8551 | 15.5 | TEETH SHORT | J550 |
| 9W8552 | 19.5 | TEETH STANDARD LONG | J550 |
| 9W8552RC | 23 | TEETH ROCK | J550 |
| 9W8552RCL | 22.7 | TEETH FISH SCALE | J550 |
| 9W8552T/1U3552TL/9W6559 | 22.5 | TEETH TIGER | J550 |
>>
Trucking Companies Shipping to Russia Logistics Russia China Goods Bulk Shipping Broker Taxes Cargo Export Agent From Guangzhou to Moscow
>>
HC-S234 Human body Anatomical medical nervous system model
>>
Lacquer USA white swing luxury bedroom solid wood door designs hotel interior wooden door
>>
stepper hydronic nema slide manual stepper exercise stappenteller
>>
Secondary Powder Airclassifier for Ball Mill
>>
Timing Guide TR3003 with OE NO. 504019931 for Iveco Ducato III 30 250 3.0 F1CE3481N 2010.04-2014.0
>>
Precision machining of zinc and aluminum alloy parts
>>
More Quantities Better Price Logistics Door High-Speed Cold-Storage Door Good Price Original Manufacturer Fast Delivery Quality Products Safe Quick Emergency O
>>
PVC window and door frame making machine
>>
Titanium Sheet Wholesale Pure Titanium Sheet Factory Price High Quality Titanium Plate
>>
Notched Constant Tensile Load Tester
>>
GAPV wholesale 2015 hilux Fog light cable fog lamp cover set assembly 81210-81220
>>
Automatic injection plastic part edge trimming machine Ultra Shot NS-180T
>>
Small Good Price UPVC Aluminum Profile End Milling Window Door Machine
>>
Zhangjiagang Machinery Plastic Milk Bottle Making Machine Dropper Bottle Machine Eye Drops Bottles Blow Molding Machine
>>
Chops Bulk Custom Printed Round Disposable Bamboo Chopsticks With Logo
>>
Pediatric Double Function Cranks Children Baby Hospital Bed Cot Crib
>>
QGF-300 5 gallon mineral water filling machine price
>>
Custom Factory Fabrication Parts Stainless Steel Machining Part CNC Precision Parts
>>
Share Plow Mouldboard Plough 1L--320 1L--220
