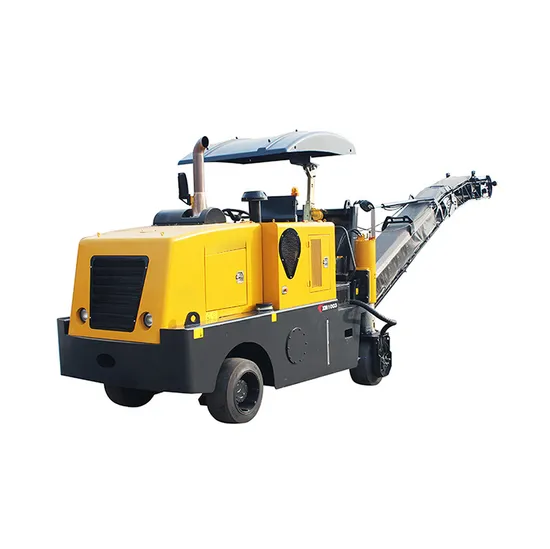

Normal CNC Machine Tools Asphalt Cold Milling Machine Xm120f

Product Description

Product Feature
XM Series milling machine is one of the main asphalt concrete road maintenance equipment, mainly used for large-scale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, retieulation and vehicle tracks as well as road trench, tunnel excavation. cement road surface roughening and dislocation smothness.
The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.
Performance and characteristic
• Hydraulic driving milling drum has the obvious characteristics of stable milling and high efficiency.
• Compact three-wheeled machine with front-wheel drive .The advance speed is infinitely variable in both gear which can be suitable for the requirement of different working conditions.
• The front steering driving axie has large steering angle and small turming radius ,can mill along the manhole covers.
• The high-strength and high wear resistance imported cutter head and cutter rest have long service life and low construction cost.
• The imported hydraulic elements have high working reliability.
• Excellent welting milling performance with right rear leg which can be fast swung into the frame makes the milling drum attached to the road edge stone or wall for milling operation.
• Hydraulic handheld breakers and rumble strip equipment can be selected.
Main Parameters

MODEL		Unit	XM120F
Engine	Engine model		QSC8.3
	Rated power /speed	Kw/rpm	209/2100
Performance parameters	Operating speed	m/min	0-32
	Travel speed	Km/h	0-5
	Gradeability	%	80
	Ground clearance	mm	≤300
	Operating weight	Kg	21500
Operating parameters	Max.milling and mixing width	mm	1200
	Max.milling and mixing depth	mm	320
	Number of tools		117
	Milling drum diameter	mm	980
	complete dimension(L*W*H)	mm	5900*2140*3000
dimensions	Beltconveyor(L*W*H)	mm	8200*1200*1500
	Fuel tank	L	660
	Hydraulic oil tank	L	120
	Water tank	L	1400
Travel mode			Track
