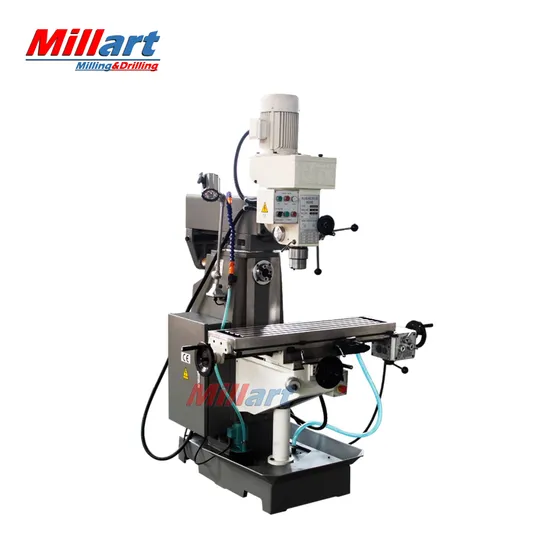

Automatic Metal Zx7550cw Universal Drilling Milling Machine for Sale

Product Description

Product Description
Feature:
1. Use as milling machines and drill press
2. Easily shift able gear drive ensures power transmission without losses
3. With gear spindle drive
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill

Model	ZX7550CW
Max.drilling dia (mm)	50
Max.horizontal milling dia (mm)	100
Max.vertical milling dia (mm)	25
Max.boring dia (mm)	120
Max.tapping dia	M16
Distance.spindle to table surface (mm)	50-350
Spindle speeds range (r.p.m)	115-1750 (V) 60-1350(H)
Spindle travel	120
Table size (mm)	800×240
Table travel (mm)	600×210x300
Overall dimensions (mm)	1280×1100×2080
Motor (Kw)	0.85/1.5(V) 1.5(H)
N.W/G.W (Kg)	850/1000

Standard accessories:
Drill chuck
Collet chuck kits
Draw bar
Reduction sleeve
X axis auto power feed
Working lamp
Coolant system
Chip tray
Operate tools
Manuals
Optional accessories:
Y axis power feed motor
Z axis power feed motor
3 axis DRO
Air draw bar
Separately control panel box
58 pcs Clamping kits
Spindle protection
Worktable protection
Worktable swivel ±45 degree
Rotary table HV10
Dividing head BS-0
Machine vice 160mm
Company information:
Packaging & Shipping
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
