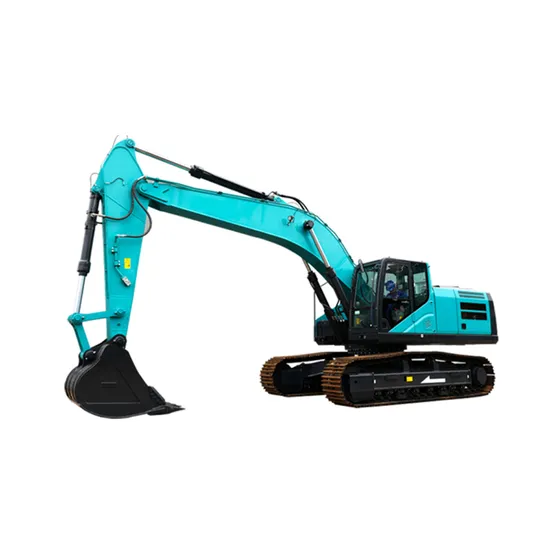

Wheel Special Hf Naked Packaging 4860*3190*3490 mm Mini Crawler Excavator

Product Description

Features 210kW high-power reserve engine, power upgrade; 220KN shovel digging force, easy to control under heavy load conditions.
1. New shape
The new generation of family-style F series has a new appearance, the whole machine is majestic and powerful, and more mine elements are added to the shape design, which is beautiful and powerful.
2. Benefit priority
High-efficiency, large-displacement hydraulic system configuration, plus 2.9m short pole and 1.7m³ large capacity hyperbolic reinforced blade, to achieve the perfect ratio of working devices according to the working conditions, high efficiency and energy saving.
3. Reliable and durable
The heavy-duty working device is supported by 36t-level die forgings; the 36t-level chassis system doubles the reliable and durable bearing capacity of the four wheels.
4. Comfortable operation and convenient maintenance
A new generation of cab, interior upgrades, electrical upgrades, improved sealing.

Specification	Unit	Parameter
Machine working weight	t	32.8
Shovel Capacity	m³	1.7
Power	kW/rpm	210/1900
Maximum torque	N·m/rpm	1080/1500
Displacement	L	7.79
System pressure	Mpa	34.3
Pilot pressure	Mpa	3.9
Swing speed	rpm	11.42
Walking speed	km/h	5.8/3.6
Climbing ability	°	35
Fuel tank capacity	L	520
Maximum digging height	mm	10330
Maximum unloading height	mm	7280
Maximum digging depth	mm	7010
Excavation depth (2.44m level)	mm	6840
Boom length	mm	6150
Total length	mm	10716
Total height	mm	3490
Total width	mm	3190
Track length	mm	4860
Track width	mm	3190
Track shoe width	mm	600

---
