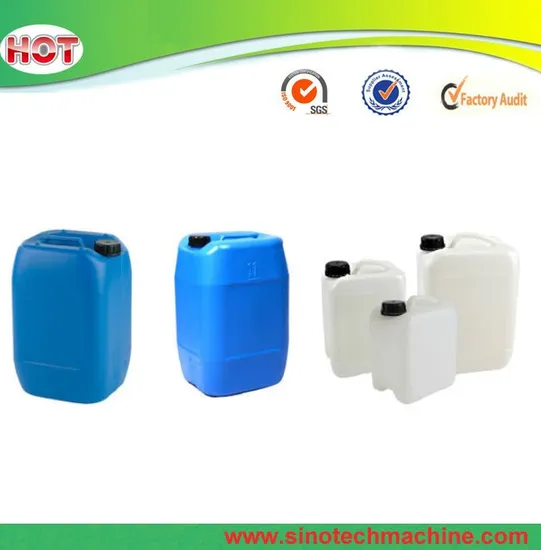

HDPE 12 Liter Plastic Bottle Blow Molding Machine/Plastic Machinery

Product Description

HDPE 12 Plastic Liter Bottle Blow Molding Machine/Plastic Machinery
Detailed Description
1. Electronic control system: Japanese mitsubishi PLC computer and human interface (Chinese or English) control, color touch operation screen operation, modular temperature empty basin.
All process Settings, changes, retrieval, monitoring, fault diagnosis and other functions are implemented on the touch screen without point contact working principle and components are durable.
The standard electric control box is rejected, which makes the component operating environment stable and the service life of the equipment is prolonged.
2. Hydraulic system: proportional pressure control, equipped with imported brand hydraulic valve and oil pump, stable and reliable.
3. Plasticization system: high efficiency plasticizing and mixing screw, ensure the plasticization is sufficient and even.
4. Speed regulating system: variable frequency debugging + alloy steel hard tooth surface reduction box, speed adjustment is stable, energy saving, noise low, durable.
5. Opening and closing mode and moving mode system: large beam arm, three-point and center locking die mechanism to ensure long-term use.
The locking force is balanced and not deformed, and adopts the translation mechanism (ball guide rail), with high accuracy, little resistance and fast speed.
6. Blow pin rack: the integral Angle ruler type blow needle rack, stable and unmoved, ensure that the incisions are smooth.
7. The opening and closing die and the sliding mechanism of the locking die are in linear guide rail with the precision of the micrometer.
The positioning precision is high, easy and energy saving, and is loaded with strong and invariable.
Patented products: two - rod, single - cylinder bidirectional synchronous open die center locking mechanism, good product stability.
8. In addition to the embryo system, the independent system shortened the cycle, thus improving efficiency
Technical Parameter

Model No.	STH-12L	STHII-12L
Max.Product Volume(L)	12	12
Station	Single	Double
Dry cycle (PC/H)	700	700*2
Screw Diameter (mm)	70(80)	90
Screw L/D Ratio (L/D)	25	25
Screw Drive Power (KW)	22(30)	37
Screw Heating Power(KW)	12.7,17.6	15.6
No.Of heating zone(Srew)	4	4
Output of HDPE(kg/h)	70(110)	130
Hydraulic pump driving power (KW)	15	15
Clamping force(KN)	158	158
Platen distance (mm)	240~620	240~620
Mold moving stroke(mm)	550	550
Max.Size of Mold(W*H)(mm)	540*550	540*550
Central distance of Bi-head(mm)	240,260	240,260
Max.Die Diameter (Bi-head)(mm)	145	145
No.Of heating zone (Bi-head)(ZONE)	7	7
Max.Die Diameter(single-head)(mm)	220	220
Die heating power(single-head)(KW)	9.1	9.1
No.Of heating zone (Single-head)(ZONE)	3	3
Blowing pressure(Mpa)	0.6	0.6
Heating power(Bi-head)(KW)	15	15
Air consumption(m³/MIN)	0.8	0.8
Cooling water pressure(Mpa)	0.3	0.3
Water consumption(L/Min)	60	60
Size of machine(L*W*H)(m)	3.3*2.3*3.1	4.1*2.9*3.1
Weight of machine(TON)	7	11

Detail show
Production workshop
Packing & Shipping
1. The machine body is covered by waterproof film firstly, and then fixed on exported wooden pallets with bolts and wires.
2. The electric controlling parts and spare parts are loaded separately in wooden box.
3. The auxiliary equipments are packaged in wooden box as well.
4. All wooden material is fumigation certificated and safe for exporting to all over the world.

After Sales service:
1. We offer you the free machine operation training happened in China.
2. Offering the free testing and installing of the machine in the buyer factory, but the fee of the visa, the ticket, food and living should be in the buyer's charge.
3. The spare parts of the machine and the auxiliary machine can be supply by us.
4. The guarantee of the machine is one year under the normal operation.
5. We offer the customer the technology for free for all life time.
Any question,please call me:
MOB&waspp: +8613773240086

---
