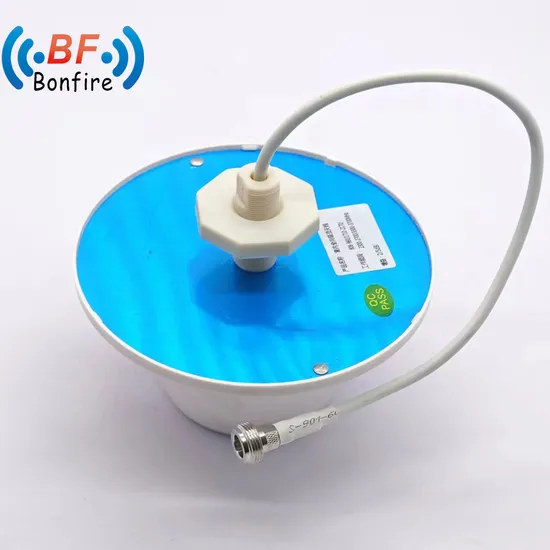

1710-2700 3300-4000MHz RF Antenna GSM WiFi Omni MIMO 4G Outdoor Antenna

Product Description

Features:
★Wide frequency band, wide coverage
★PIM optimized design.
★Ideal for all kind of DAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:

Frequency Range(MHz)		698-806 806-960 1710-2700 3300-4000
Gain(dB)		3.0±0.5 3.0±0.5 4.5±1.0 5.0±1.0
VSWR		≤1.8 ≤1.5 ≤1.5 ≤1.8
Polarization		Linear×2
Horizontal Beam width	Horizontal Vertical	360
		90 85 45 35
Isolation( dB)		>17 >17 >20 >25
PIM, 3rd Order, 2 x2 W(dBc)		≤-150
Maximum Power(W)		50
Impedance(Ω)		50
Connector Type :		4.3-10-Fx2
Size(mm)		Φ182×30
Antenna Weight(kg)		0.2
Mounting Kit		Ceiling, via hole (standard)
Radome Material and Color		ABS, White, RAL9003
Relative humidity(%):		< 95
Operating Temperature(ºC):		-55~60
Applications:		Indoor

All our products can satisfy :
1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid
All our products category :
RF Antenna , RF combiner, Power Splitter , Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
Customers we served :
HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.

Cooperate Once, Replace Never !

---
