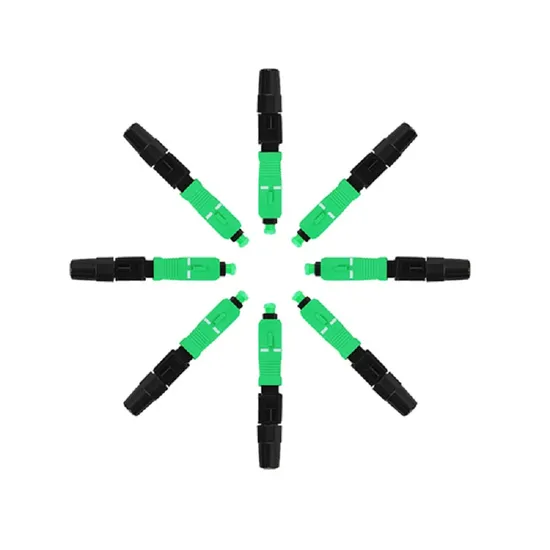

FTTH Sc Upc APC Fiber Optical Fast Quick Cable Connector

Product Description

FTTH SC UPC APC fiber optic fast quick connector Fast connector is a good solution to field wiring and fiber-to-the home engineering connector. Assembly without glue, grinding and electrical tools, is widely used in construction section, the place need to quickly connect, to provide a fast and stable connector for the operation. It adopts the latest fiber formed technology. All the optical and mechanical index meet the patch cord standard, to achieve to make the patch cord via mechanical cold junction, it change the traditional splice opinion, offer the powerfull support for FTTx. APPLICATIONS · Fiber Patch panel. · Distribution Frame · FTTH · Fiber-optic network equipment · Cable television network FEATURE · Compatible with both 3mm drop cable and 3x2mm flat cable · Fast and easy installation (within 90s) · Adopted fiber pre-installed structure. · Low insertion loss. High return loss. · Pressing position use newly special structure design, without infusion, grind and waste material. · Use embedded fiber type structure, ensuring the high installation quality, success rate and quick installation. · Easy for assembling with mechanical splice and no polishing · Minimize the defect rate by features of removal and reusable. SPECIFICATION OF Fast Connector

Cable	3.0 x 2.0 mm drop cable
Fiber diameter	125μm (G652, 657A & 657B )
Operating wavelenght	1310nm	1550nm
Insertion loss	Average≤ 0.3dB	maximum≤ 0.5dB
Return Loss	UPC≥45dB	APC≥60dB
Bare fiber fastening force	>4 N
Tight buffer clamping force	>10 N
Tensile Strength	>50 N
Online tensile test(20 N)	IL ≤ 0.2dB	RL ≤ 5dB
Mechanical durability(500times)	IL ≤ 0.2dB	RL ≤ 5dB
Relative humidity requirements	≤95%(+30ºC)
Atmospheric pressure requirement	62kPa~106kPa
Storage temperature requirements	-40ºC~+85ºC
Work temperature requirements	-40ºC~+85ºC
Average assembly time	1 minute
Assembly success rate	97%
Re-assembly	>5Times
Durability	>500 Times

Product Description
Related Products

Company Information
FAQ 1.Are you the real factory
Yes,we are the real factory with 20 years' history.

2.What is your fiber brand ?
Fiber brands :NECERO

3.What is your main products
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4.Product quality guarantee period?
25 years' Guarantee for fiber optic cable

5.Do you have certificate for raw material ?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6.What is your delivery time?
Within 24 hours for 30KM normal kinds of fiber optic cable;
1 ~2 days for fiber optic patch cords with 10000 connectors.

---
