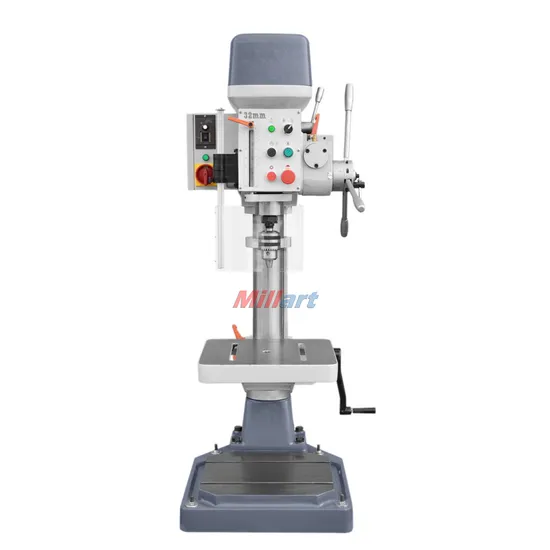

Hot Sale Small Vertical Auto Feeding Drilling Machine Zb4132g Zb4132gp, Bench Top Strong Drilling

Product Description

Product Description
Technical parameter :
Feature :
Spindle auto feed with variable feeding rate
High spindle rigidity
Threading by automatic switching of the left turns
The spindle head, column, table and column base made of the highest quality of seasoned castings
Spindle and transmission shafts of hardened and heat treated steel
Built-in led lamp
High engine power
A large spindle stroke
Readable control panel
Working table manually lifted with 360 rotation and assembly grooves
Belt transmission cover equipped with an extreme safety switch
Adjustable drill chuck with key and mounting on the Morse taper
Technical parameter :

Model	ZB4132G	ZB4132GP
Max.Drilling capacity	32	32
Max.Tapping capacity	M24	M24
Diameter of column	100mm	100mm
Spindle travel	150mm	150mm
Spindle feed rate	20-204mm/min	20-204mm/min
Distance spindle axis to column	265mm	265mm
Max.Distance spindle nose to table	390mm	390mm
Max.Distance spindle nose to base	745mm	745mm
Spindle Taper	MT3	MT3
No. of Speeds	5 steps	5 steps
Spindle speeds range	280~1875r/min	280~1875r/min
Dimension of workable surface	380x400mm	380x400mm
Dimension of base	310x380mm	310x380mm
Overall height	1130mm	1130mm
Main motor	1.5 kw	1.5 kw
Coolant motor	/	0.04kw
Feed motor	90w	90w
weight	238kg	238kg
Packing size	104x64x151cm	104x64x151cm

Sandard accessories:

Coolant system

Work lamp

Drill chuck

Reduction sleeve

Wrenches

Worktable lifting handle

Optional accessories:

Machine vice

Depth display

Spindle protection

Motorized table lifting

Company information:
Packaging&Shapping
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
