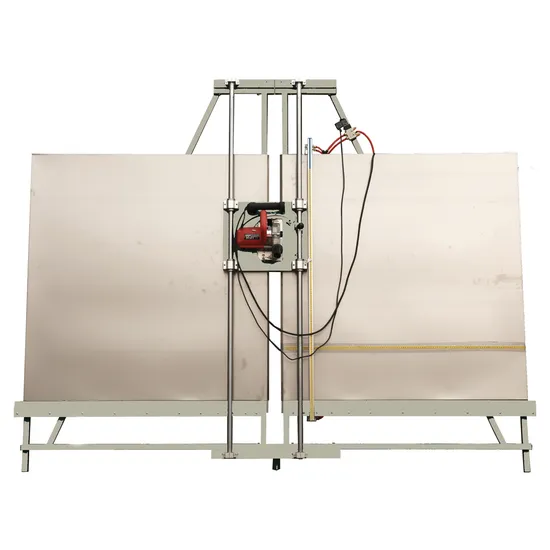

Woodworking Machinery Aluminum Solid Wood Plywood MDF PVC Melamine Board Horizontal Cutting Vertical Panel Saw

Product Description

Model	MJ6325
Max cutting height	1300mm
Max cutting thickness	20mm
Power of main saw spindle	1.8kw
Rotary speed of main saw spindle	4400/5600r/min
Diameter of main saw	127mm
Diameter of main saw spindle	20mm
Tilting saw blade	90°
Voltage	220V
Dimension	2500*1800*500mm
Weight	200kg

1. Integrated design, the frame is welded by thickened square tubes, which is thick and firm.
2. Adopt high-quality linear bearings, thickened cylindrical guide rails, no bending or deformation, easy to move the panel saw, and convenient cutting.
3. The bottom is densely covered with roller guide rails, and the materials are placed on it, which can easily push the plates without effort and trouble.
4. With a scale, it is convenient to watch the size and ensure the cutting accuracy.
5. The panel is made of thick stainless steel plate, which is not deformed and not easy to rust.
6. Equipped with a pneumatic pressing device, start the electric cooker, the solenoid valve starts to work, and control the cylinder to press the plate, no need to hold the plate with hands, free your hands, convenient and practical.
7. Simple and convenient operation, high efficiency, one person can operate, safe and reliable.
With a rolling pulley, the board is easier to move and does not require much strength.
The saw head can be rotated horizontally, not only can be cut lengthwise, but also can be cut horizontally.
Connecting the expansion valve can tightly compress the plate to prevent it from moving, making it easier for us to operate.
Many support rods are used to make the panel very sturdy. Greatly increased stability.
Equipped with a graduated scale for precise cutting.

---
