Plastic PVC Conical Twin Screw Extruder for Electrical Wire Conduit Plastic Pipe

Product Description

Conical Twin-Screw Plastic Extruder
Product Description:
1.This production line can be used to produce corrugated pipes of PE,PP,PVC,EVA continuously,as well as PA corrugated pipes.
2.Plastic single wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good
flexibility, etc
3.They are widely used in fields of auto wire, electric thread passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc
Application & Features:
1.SJSZ series of conical twin-screw extruder is used for extrude PVC powder to become plastic pipe, profile, plate and etc when change different mould, screw and auxiliary equipments.
2.It includes screw, barrel, gear transmission system, heating, cooling and electric control and etc.
3.The screw has applied oil cooling system. Bareel is cooled by special wind cooling system.
4.Vacuum exhausting and material feeding device is fixed with machine.
Production Flow:
Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→meter measurer→double winder→finished product inspecting &packing
Technical parameters:

Model	SJSZ51/105	SJSZ55/100	SJSZ65/132	SJSZ80/156	SJSZ92/188
Screw diameter(mm)	51/105	55/100	65/132	80/156	92/188
Quantity of screw	2	2	2	2	2
Max. rotation speed of screw(r/min)	40	38	38	37	36
Effective length of screw(mm)	1200	1200	1440	1800	2500
Main motor power(kw)	18.5	22	37	55	110
Productuion capacity(kg/h)	100	150	250	400	750
Center height(mm)	1000	1000	1000	1100	1200
Dimensions(L*W*H)mm	3360*1290*2127	3620*1050*2157	3715*1520*2450	4750*1550*2460	6725*1550*2814

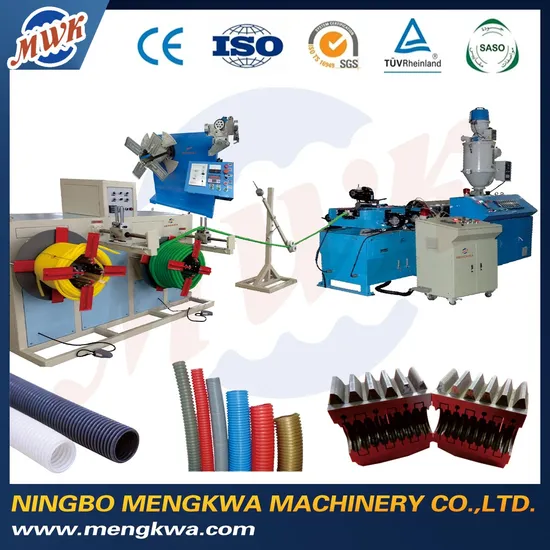

the machine line photos for reference :
the samples :
01 WHY CHOOSE MENGKWA?
1) Mechanical and electric parts of machines for our machines are from famous brands with reliable and stable quality .
2) Machine structures and applicant parts are heavy duty type .
3) Technologies of machines are developing to be much more energy saving and higher production output .
4) Engineers for installation and training are both available in China and abroad .
5) Our after service is available in 24hours by team group to every customer .
6) Our machines reach to 54 countries all over the world since 1996 .
02 TERMS OF PAYMENT
30% deposit and 70% balance before shipment after machine testing approved by customer .
03 PACKING AND LOADING
Safe packing for container loading OR heavy duty iron frame fixing OR wood cases packages .
04 AFTER-SALE SERVICE
1) 24 hours technical support by email, call, video.
2) Warranty for one year after 12 months of shipment.
3) Installation and commissioning engineer will provide the tech long machine, and machine operation of the buyer's personnel on-site training, troubleshooting and machine maintenance. The factory offers free installation training for a week the company engineers, beyond a week, the salaries borne by the customer engineer the factory.

---
