US$149,000.00-668,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification

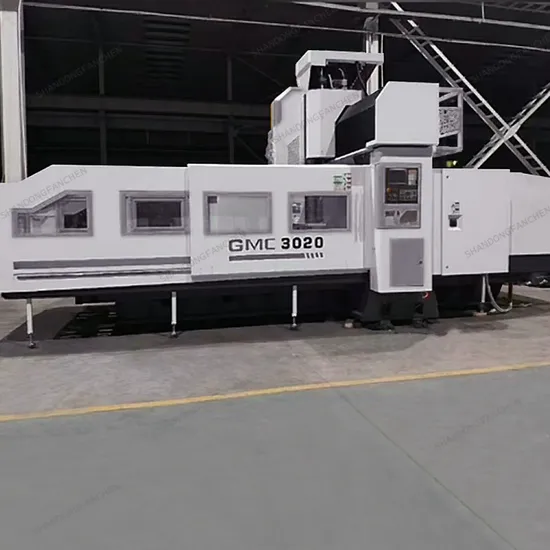

Five-Axis Gantry Machining Center
Certification
GS, CE, ISO 9001
Bed Dimension
3000/2000mm
Maximum Load-Bearing of The Workbench
8000kg
T(-)T-Type Groove (Slot Number-Slot Widt
8-22mm
Xmaximum X-Axis Itinerary
3000mm
Ymaximum Travel of Y Axis
2200mm
Zmaximum Trip on The Z Axis
1100mm
Maximum Cutting Speed
1-10000m/Min
Positioning Accuracy
0.005/300mm
Overall Dimension
8500/4250/4100mm
Outside Sheet Metal
Complete Safety Protection
Transport Package
Two Years
Specification
8500/4250/4100mm
Packaging & Delivery
Package Size
850.00cm * 425.00cm * 410.00cm
Package Gross Weight
8000.000kg
Product Description
| Content | Name (of a thing or organization) | Specifications and models | Specifications and models |
| Operating platform | Bed dimension | 3000mm X 2000mm | 3000mm X 2600mm |
| Maximum load-bearing of the workbench | 2200kg | 3000kg |
| Range of work | XMaximum X-axis itinerary | 3000 mm | 3000mm |
| YMaximum travel of Y axis | 2200 mm | 3000mm |
| ZMaximum trip on the Z axis | 1100 mm | 1200mm |
| Gantry width | 2200 mm | 2600mm |
| Principal axis | Range of speeds | 6000 r/min | 6000r/min |
| Maximum power of the spindle motor | 22 kw | 22kw |
| /Minimum / maximum distance from spindle to mesa | 150-1250 mm | 150-1250 |
| Spindle taper | BT50/190 | BT50/190 |
| Servo | Three-axis motor torque | 36/36/36 NM | 36/36/36NM |
| Feed Speed | Quick travel | X 28m/min | X 28m/min |
| Y 28m/min | Y 28m/min |
| Z 12m/min | Z 12m/min |
| Maximum cutting speed | 6000 mm/min | 6000 mm/min |
| Positioning accuracy | Xx-axis | 0.01mm | 0.01mm |
| YY-axis | 0.01mm | 0.01mm |
| ZZ-axis | 0.01mm | 0.01mm |
| Repeat positioning accuracy | Xx-axis | 0.008mm | 0.008mm |
| YY-axis | 0.008mm | 0.008mm |
| Zz-axis | 0.008mm | 0.008mm |
| verticality | X/YX/Y axle | ±0.005/300 mm | ±0.005/300 mm |
| Machine tool weight | 38T | 42T |
| Overall dimension | 8500/4250/4100mm | 8300/5800/5600mm |
FAQ
1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
>>
