Best Ceramics Stone Machinery Water Jet CNC Five-Axis Marble Cutting Machine for Building Materials

Product Description

Product Description

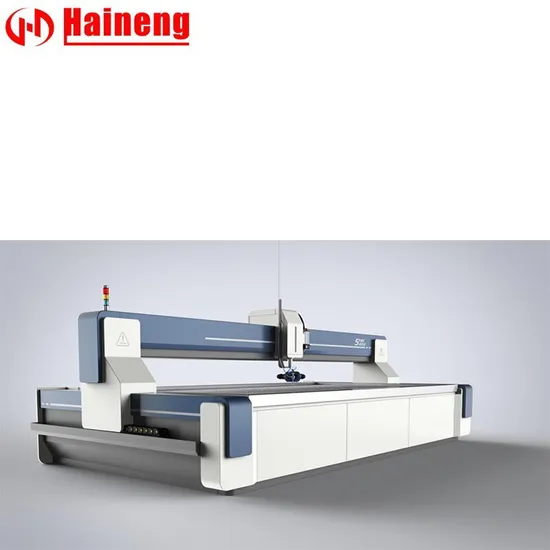

CNC five-axis waterjet
In five axis CNC system, coordination of X, while Y, Z and A, B of the two axis of rotation, the water jet cutting head can swing in any direction. When cutting, the computer according to the real-time calculation of the density and thickness of materials by cutting the workpiece, and control the cutting head along the cutting path and operation, to achieve three-dimensional complex shape of the workpiece cutting, such as surface slope cutting, chamfering and cutting high precision conical surface circular surface complex. The water jet and achieve higher performance and bring better benefits.
Cutting edge
1 strong versatility, almost all materials can be cut.
The 2 is cold water jet cutting, cutting does not produce thermal effects, no deformation, no residue, no ablation, does not change the physical and chemical properties of materials.
3 small slot, with the characteristics of cooling cutting, can improve the utilization rate of materials.
4 cutting medium only water and natural abrasives, cutting process does not produce other substances, is clean and environmentally friendly cutting process.
5 after cutting, the cutting surface is smooth and smooth, not in the cutting process of cutting objects have any damage, you can play a lot of cutting tools can not achieve the cutting operation.
The scope of application of water jet is very wide, from the metal material to non-metallic materials, materials from natural to artificial materials, from food to household goods, basically can be cut, "universal cutting machine" reputation.
Main application areas are:
1, ceramics, stone and other building materials processing
2, the processing of glass products, such as glass parts cutting, building decoration, craft glass
3, machinery industry, metal plate cutting
4, the advertising industry signs, art pattern cutting

Product Parameters

CNC five-axis waterjet Structure:Bridge/Flying-arm
Type		unit	SKSD4020-AB	SKSD3020-AB	SKSD3015-AB
Table size	X-Axis	mm	4100	3100	3100
	Y-Axis	mm	2100	2100	1600
Stroke	X-Axis	mm	4000	3000	3000
	Y-Axis	mm	2000	2000	1500
	Z-Axis	mm	150	150	150
Motor			Servo motor	Servo motor	Servo motor
NC system			Special software	Special software	Special software
Cutting accuracy		mm	±0.15	±0.15	±0.15
Repeatability		mm	±0.05	±0.05	±0.05
Traverse speed		mm/min	10000	10000	10000
Power supply			220/380/415VAC, 50/60Hz	220/380/415VAC, 50/60Hz	220/380/415VAC, 50/60Hz

Processing

Packaging & Shipping

Partial Control Element
Company Profile
CertificationsExhibitionMarketing SystemCompany information
After Sales Service
1.Parts & Accessories Quick supply for needs
2.Troubleshooting by phone, e-mail, or WhatsApp/Wechat
3.Provide paper or electronic version of the product manual
FAQ
Q:what is the MOQ?A:1 set.Q:How's your machine's quality?A:We are a professional stone machine manufacturer more than 20 years, we've sold lots of machine at home and abroad. We will continuously provide new and old customers more and better services to help your business booming.
90% of our factory's machine are exported, including for the United States, Brazil, Russia,Algeria,Iran, Egypt, Morocco, Georgia, and other more than 10 major purchasers and for more than 20 Chinese trading companies OEM, and we also directly export too, the machines are exported to over 85 countries and regions.Q:What's the warranty time?A:The whole machine is guaranteed for one year, including electrical components and mechanical partsQ:Whether the machine can be customized according to our requirements?A:Customization available,Experienced techs for all your questions.
The factory owner is a mechanical engineer with more than 25 years of design and manufacturing experience. A variety of products have been customized for different customers in more than 20 countries.

---
