Basic Info.
Structure
Mill Drilling Machine
Automatic Grade
Automatic
Cutting Motor Power
6X1.1kw
Max Drilling Hole Diameter
13mm
Max Distance Between Two Drilling Holes
5000mm
Min Distance Between Each Group Holes
300mm
Workable Size (Lxw)
300X280mm
Drilling Head Feeding Travel
100mm
Max Processing Profiles Section Size
200X250mm
Contour Dimension (Wxhxl)
5500X1300X1900mm
Application
Drilling Holes
After Service
Online Support
Advantage
High Productivity
Transport Package
Wrapped in Plastic Film and Fixed on Steel Pallet
Specification
5500*1300*1900mm
Origin
Jinan, Shandong, China
Production Capacity
200 Sets a Year
Product Description

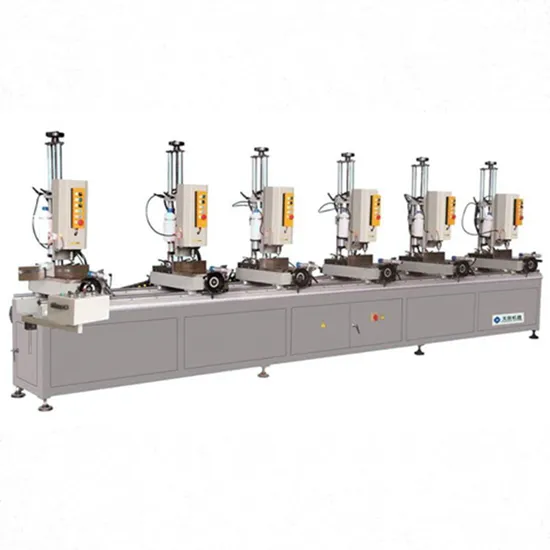

High Precision Long Travel CNC Drilling Machine for Aluminum Profile
LZZ6A-13
Machine Features
1. It is mainly suitable for drilling processing of aluminium windows and doors and curtain wall profiles in mass
production with high efficiency ,which can realize automatic drilling processing by scanning code.With 6 seperate
drilling heads,each of them can have.
2. With 6 seperate drilling heads,each of them can have accurate CNC positioning very quickly.
3. Useing high performance CNC system, any number of the machine heads' combined drilling work altogether can
be realized.
4. Multi-head boring anchor can be fixed to meet multi-holes processing requirement.
5. Feeding System adopts airdraulic-damping cylinder,which ensured smooth feeding.
6. Machine LZZA-13 is manually positioning type.
Technical Parameters
| Item | Specification |
| Each Length | 3000mm |
| Each Width | 2200mm |
| Worktable Height | 670/870mm |
| Speed | 5~13m/min |
| Motor Power | 0.55kw |
>>
