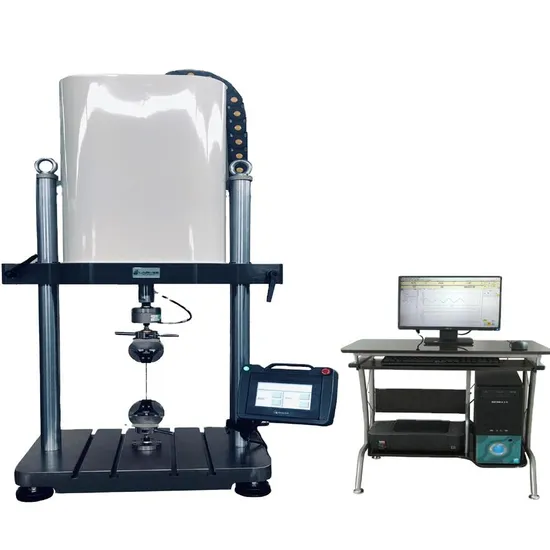

Fatigue Dynamic Tensile Testing Test Machine Instrument Equipment Tester

Product Description

1: Host FrameworkMain frame of two columns, hard chrome plated, effective width between columns 500mm;Upper beam: The ball screw on the back of the column moves up and down to adjust the test space;The maximum adjustable space: 800mm;Working table height: 100mm;Frame stiffness: 3.3*108N/m.2: Actuator
Placed above the main frame workbench; Maximum static test force: +/-3kN;Maximum dynamic test force: +/-3kN; Actuator stroke: 150mm (can be customized). 3. Sensor
High precision load sensor, placed on the upper beam, with pre-tensioning mechanism;Displacement sensor: Measuring range 150mm, built-in actuator.4. Control and Computer Software System
The control system uses Panasonic actuator;Test Control Software System;The test software is intuitive and readable.Key specifications:

Model	PWS-3
Maximum static test force	±3KN.
Maximum dynamic test force	±3KN
Accuracy of test force	In range of 2%-100%, Accuracy:±1%
Frequency range	0.1-10Hz
Volatility of dynamic force indicated value	2%
Maximum stroke	±75mm, indication accuracy: ±0.5%;
Flat Sample Thickness	0-7mm
Round Sample diameter	Φ2~φ9mm
Power Supply	AC 380V, 50Hz
The main wave-forms	Sine wave, square wave, triangle wave , serrate wave and Cosine wave
Frequency-frequency characteristics table:	Frequency (Hz)	1	2	5	10
	Amplitude (mm)	20	10	4	2

Laryee Technology Co., Ltd. is known as a professional manufacturer of materials testing equipment for determination of mechanical properties. Laryee's materials testing machines are highly engineered and stable, which thanks to the advanced production techniques and strict quality requirements throughout all phases of design and construction. Our experienced technical consultants can provide you with all-round technical support and advice by assisting you to find the best solution to your requirements and offer you the most suitable model for your needs. Our support also extends to responsive after
sales service.

---
