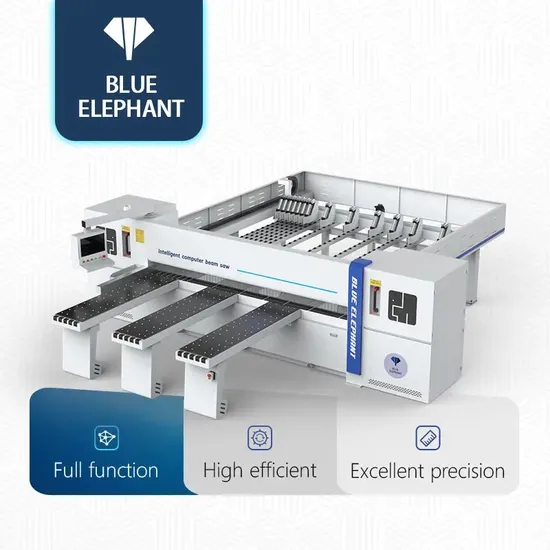

2024 CNC Automatlc Computer Panel Saw Precision Machine with Good Price

Product Description

2024 CNC Automatlc computer Panel Saw Precision Machine with good price

Product Description
Machine Features:
1. The automatic loading platform greatly improves loading efficiency and saves human labor. 2. Equipped with a warning device, it will automatically shut down when a fault occurs. Besides, it has an automatic fault detection function to help you find the cause. 3. It can edit or simulate saw-cutting programs through compatibility with optimization software, barcode management software and automation software. 4. The high-performance servo motor can run control demands fast and precisely to guarantee efficient cutting. 5. It adopts an air-floating worktable, which is convenient for panel feeding.

Parameters:

Items	Parameter
Model	ELECNC -280HG
Panel saw dimension	5400x5300x1800mm
Cutting length	2700mm
Cutting thickness	100mm
Main saw blade diameter	350mm
Main saw blade revolving speed	4800rpm
Groove saw blade diameter	180mm
Groove saw blade revolving speed	6900rpm
Forward speed of carriage	100m/min
Backward speed of carriage	150m/min
Main saw motor	15kW
Groove saw motor	2.2kW
Auto feeding motor	100m/min
Air pressure	5-7kg/cm2
Platform height	950mm
PLC	Fatek
Converter	Invt
Screen	Jikowi
Pneumatic elements	Hengtong
Solenoid valve	AirTac
Motor	Igarashi
Servo control system	Invt

PS:All the working area and specifications can be customized according to your requests.

Detailed Photos








Sample & Application
It is mainly used for the sawing of the wooden box and the cutting board of the wooden box to obtain the board with the size meeting the specifications.


Packaging & Shipping
Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.
Delivery Detail: Shipped in 15 working days after payment.




Our Service
1, Within 7days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.




Company Profile
Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
