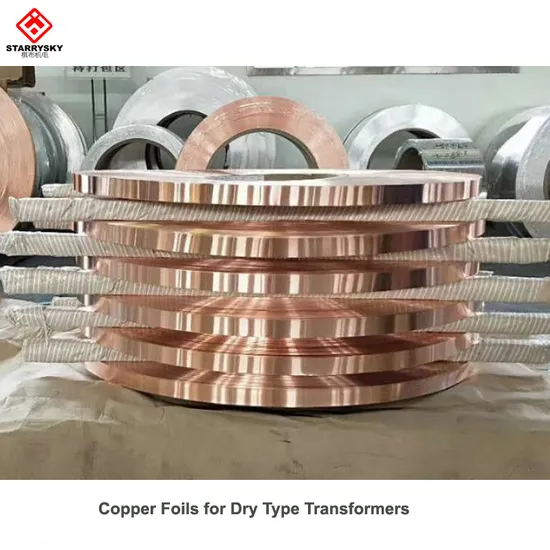

Product Description Copper Foils for Transformer Windings, Alloy C11000-Soft Annealed
Alloy & Temper:
| Copper C11000-Soft Annealed ( Chinese Standard T2-M)
|
Conductivity:
| IACS% 98 min.
|
Thickness:
| 0.2mm-4.0mm
|
Width:
| 20mm - 1350mm
|
Inner Diameter:
| 300mm, 400mm, 500mm
|
Outer Diameter:
| 850mm -1000mm
|
Height of Burrs:
| 0.02mm Max. Suitable for Transformer Foil Winding.
|
Surface Quality:
| Flat, Smooth and no scratches or rolling marks
|
Packaging:
| With Interleaving Protective Paper; Eye to Sky or Eye to Wall packaging;
|
Application:
| Oil Immersed Distribution Transformers, Dry Type Transformers
|
