US$0.25
1,000-9,999 Meters
Basic Info.
Material Shape
Round Wire
Allowed Lateral Pressure
100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength
100N<1000N
Certification
RoHS, CE, ISO9001, VDE, CPR Eca Dca Cca
Cable Core
2/4/6/8/10/12/14/16/18/20cores
Jacket
PVC/LSZH/LSOH/LSNH/LSF/PE
Span
50m/100m/200m/400m/500m/1000m
Transport Package
Shipping Box or Wooden Pallet
Specification
2/4/6/8/10/12/14/16/18/20 cores
Production Capacity
5000000000
Packaging & Delivery
Package Size
32.00cm * 32.00cm * 10.00cm
Package Gross Weight
20.000kg
Product Description
Product Description:

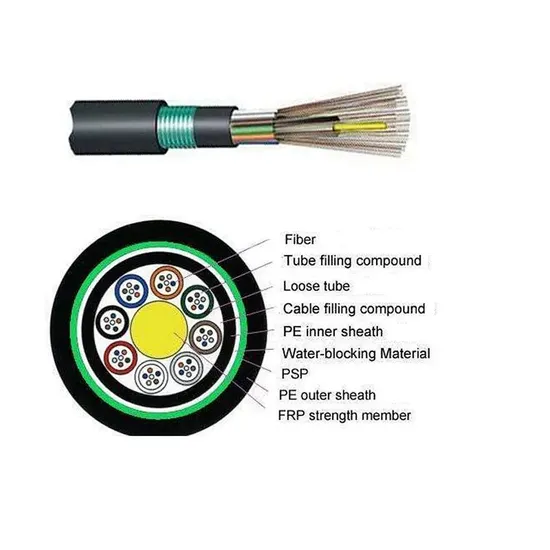

The structure of the hybrid optical cable is that a 250μm optical fiber is sleeved into a loose tube made of high-modulus material, and the loose tube is filled with a waterproof compound. The center of the cable core is FRP or metal reinforcement (some structures need to add a layer of PE cushion to the reinforcement). Wires and loose tubes (and filler cords) are twisted around a central reinforcing core to form a compact and rounded core, and the gaps within the core are filled with water-blocking filling. Double-sided plastic-coated steel tape (PSP) is longitudinally wrapped and then extruded into polyethylene or low smoke halogen-free (LSZH) sheathed into cables.
Features:
· Cost-effective: It integrates optical fiber and power transmission and distribution cables, avoids secondary wiring, and can effectively reduce the cost of construction and network construction.
· It is suitable for a variety of business types, with strong adaptability, strong scalability, and wide product adaptability.
· It has strong mechanical properties, such as impact resistance and good pressure measurement resistance, and strong environmental adaptability.
· Superior green and safety performance.
· The optical unit is compatible with the long-term operating temperature of the power cable
Optical performance:
| G.652 | 50/125 | 62.5/125 |
Maximum attenuation | 850nm | | 3.5dB/km | 3.5dB/km |
1300nm | | 1.5dB/km | 1.5dB/km |
1310nm | 0.45dB/km | | |
1550nm | 0.30dB/km | | |
Typical attenuation | 850nm | | 3.0dB/km | 3.0dB/km |
1300nm | | 1.0dB/km | 1.0dB/km |
1310nm | 0.40dB/km | | |
1550nm | 0.25dB/km | | |
Minimum bandwidth | 850nm | | 400MHz·km | 160MHz·km |
1300nm | | 800MHz·km | 500MHz·km |
Technical parameters:
Item | Technical Specifications | Remark |
Bending Radius(mm) | Dynamic | 30D | |
Static | 20D | |
Tensile Strength(N) | Short Term | 3000 | |
Long Term | 1500 | |
(N/100mm2) Crush Resistance | Short Term | 3000 | |
Long Term | 1000 | |
Operating Temperature range | Electric wire | -15ºC~+70ºC | Comply with GB5023-1997 |
Other materials except electric wire | -40ºC~+70ºC | |
Water-blocking / Waterproof Performance | No water leak if immersed in water for long time | Except wire conductor |
No electric leakage |
Construction Temperature range | -20ºC~+60ºC | Except electric wire |
0ºC~+60ºC | electric wire |
Weight | 347kg/km (RV-2*2.5mm) 382kg/km (RV-4*2.5mm) 502kg/km (RV-6*2.5mm) 628kg/km (RV-8*2.5mm) | |
Mechanical Properties | Stretching, crushing, impacting, repeated bending, torsion, winding and loss comply with YD / T 901-2001 |
Applicable System of Laying | Suitable for pipe, channel, cable trenches, aerial, direct burial and so on |
Storage/Operating Temperature : -20ºC to + 60ºC
FAQ: Q1: What kind of cable do you produce?
A: We specialized in producing Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables, telecommunication cables, telephone cables, power cables and other various of cables and wires
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc
Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.
Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
Q6: Where is your factory located? How can I visit there?
A:Our factory is located in Ningbo City, Zhejiang Province, China, about 30 minutes away from Ningbo Lishe Airport .All our clients, from home or abroad, are warmly welcome to visit us!
>>
