US$9,500.00-14,500.00
|
3 Pieces
(MOQ)
|
Basic Info.
Maximum Lifting Height
10m
Certification
ISO9001:2000, China Coal Mine Safety Certificate
Rate Lifting Capacity
10t
Working Medium
Fire-Resistant Hydraulic Fluid/Hydraulic Oil
Applicable Industries
Mining Industry
Transport Package
Wooden Case
Specification
397mm× 200mm× 435mm
Production Capacity
5000 Pieces/Year
Product Description
Product Description

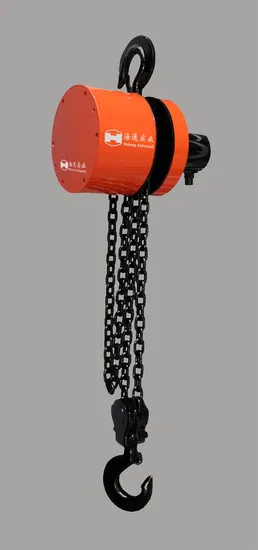

The emulsion chain hoist is a commonly used lifting tool in the comprehensive mining face of coal mines, primarily for the transportation of materials in underground mining operations, and is also suitable for application in other mining industries. The product uses emulsion liquid with low viscosity as the power source, which perfectly matches the power medium of hydraulic supports and other equipment, while also being compatible with various working media such as hydraulic oil and water, meeting the needs of underground use. The product comes with a quick-coupling connector, which can be directly connected to the high-pressure rubber hose on the hydraulic support without the need for any additional auxiliary equipment.
The emulsion chain hoist consists of an emulsion motor, a reduction mechanism, a hook, a lifting chain, and high-pressure rubber hoses, controlled by an operating valve to meet the lifting needs of equipment and materials in the underground tunnels.
Detailed Photos
Product Parameters
| Item | Unit | Parameter |
| HRD3 | HRD5 | HRD10 |
| Dimensions | mm | 397×200×435 | 397×200×435 | 397×200×435 |
| Weight | kg | 40 | 60 | 100 |
| Rated Working Pressure | MPa | 20 | 20 | 20 |
| Lifting Speed | m/min | 1.8 | 1.8 | 0.9 |
| Lowering Speed | m/min | 2.2 | 2.3 | 1.1 |
| Lifting Height | m | 3-6 | 3-6 | 3-6 |
| Rated Motor Speed | r/min | 300 | 300 | 300 |
| Rated Flow Rate | L/min | 35 | 40 | 80 |
| Rate Lifting Capacity | T | 3 | 5 | 10 |
| Tilt Lifting Angle | degrees | <15 | <15 | <15 |
| Working Medium | | 1.5--5% Emulsion Fluid | 1.5--5% Emulsion Fluid | 1.5--5% Emulsion Fluid |
Certifications
Chinese Coal Safety Certificate
Product Patent
FAQ
Q1: Can we have sample?
A: Yes of course.
Q2: What are your terms of packing
A: Packed in the standard wooden case, or as you required.
Q3: How long is the delivery time?
A: Normally, 10 days after receiving the deposit. The exact delivery time depends on the items and the quantity of your order.
Q4: Can you manufacture according to the samples?
A: Yes. We provide with OEM service based on the design drawing or the sample.
Q5: Can we have our logo or design for goods?
A: Yes, customized logo and design are available.
