Basic Info.
Making Method of Parison
Extrusion-Blow Molding
Computerized
Computerized
Certification
CE, ISO9001:2008, QS
Transport Package
Film Package
Specification
2.6X1.6X1.8M
Production Capacity
10000PCS/Day

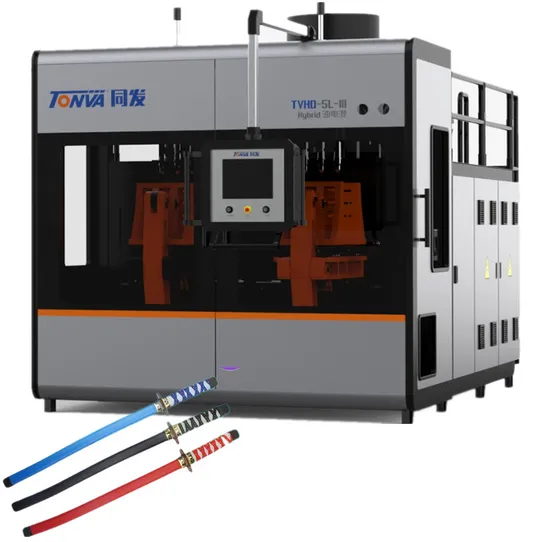

Product Description
Double stations 4cavities(tube) Single layer Automatic trimming: Neck/Bottom Output: around 3000BPH Power supply: 380VAC 50HZ Water cooling: 20ºC (5HP Water chiller) Air source: 0.6Mpa, 0.6m³/min (1.2 m³/min Air compressor)
| 1 | Unit | TVHD-1L |
| |
| Raw Material | PE/PP/PA/PVC/PETG/ABS/PS/EVA/TPU etc |
| Machine Weight | | 2.3 |
| Machine (L*W*H) | m | 2.6x1.6x1.8 |
| Extrusion System |
| Diameter of Screw | mm | 55 |
| Screw L/D ratio | L/D | 23:1 |
| Plasticizing Capacity | Kg/h | 55 |
| Heating Zones | pcs | 4 |
| Heating Power | kw | 7 |
| Screw Motor | kw | 7.5 |
| Die Head |
| Heating Zones | pcs | 3 |
| Heating Power | kw | 1.5 |
| Power Consumption |
| Air Pressure | Mpa | 0.6 |
| Air Consumption | m3/min | 0.6 |
| Cooling water | m3/h | 0.6 |
| Total Power | kw | 14-16 |
| Clamping System |
| Clamping Distance | m | 150 |
| Sliding Distance | mm | 320 |
| Open Stroke | mm | 160-310 |
| Mould Platen Size | mm | 280x300 |
| Clamping Force | kn | 30 |
| Working Condition |
| Piston Type Air Compressor | kw | 7.5 |
| Water Chiller | HP | 3 |
Dear manager
hi,how are you?thanks read our products information, i feel honored.
our company establish at 1993,so have stably good experienced.manufactur from 0.1ml-5000L hollow products,so hope we can help you choose which type of machine you want.if you interesting,pls contact with me.i'm rita
sincerely
Zhejiang Tonva Plastics Machine Co.,LTD.
Website:tonva-machine.en.made-in-china.com
Add:No.30,Huihai Road,Binggang Industrial Zone,Shamen,Yuhuan,Zhejiang,P.R.China.
>>
