Lifting Equipment Parts Adjustable Weighting Spring Balancer

Product Description

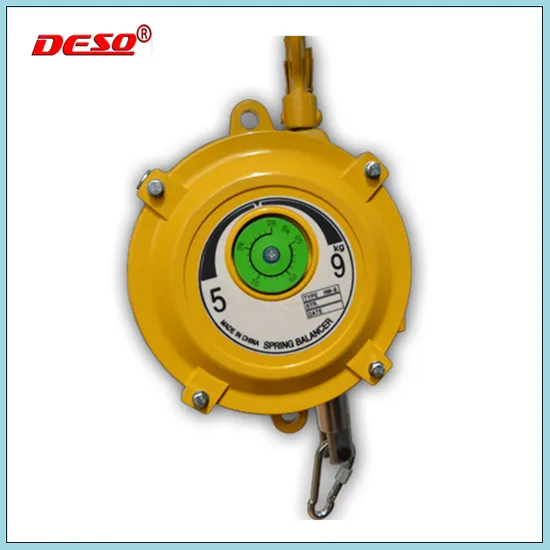

Spring Balancer Self-Locking
Feature:
*It provides 15kg to22kg of lifting load, and a number of 8 different load ranges are provided for option
*When mounted with install hook, it can perform 360 degree revolving
*Aluminum die casting housing
*It is provided with anti-falling steel wire installation hole
*Tool anti-falling device is provided in case of the spring breaking
*It's widely used for welding product lines of vehicle body, rivet lines, and assembly line of engine, motorcycles and home appliances where the tools must be hung
*Durable spring

Model No.	Min load capacity (kg)	Max load capacity (kg)	Cable travel (m)	N.W (kg)
HW-1.5	0.5	1.5	1.9	1.58
HW-3	1	3	1.9	1.6
HW-5	3	5	1.9	1.65
HW-7	5	7	1.9	1.7
HW-9	5	9	1.8	4.5
HW-15	5	9	1.8	4.8
HW-22	15	22	2.8	8
HW-30	22	30	2.8	8.5
HW-40	30	40	2.8	10
HW-50	40	50	2.8	10.5
HW-50	50	60	2.3	11
HW-70	60	70	2.3	12
HW-80	70	80	2.3	12.5
HW-100	80	100	2.8	19
HW-120	100	120	2.5	20
HW-140	120	140	2.5	21
HW-160	140	160	2.4	22
HW-180	160	180	1.7	23
HW-200	180	200	1.7	24

If you need more details or have any questions, please feel free to contact us, we are more than pleased to do any help. Thanks!

---
