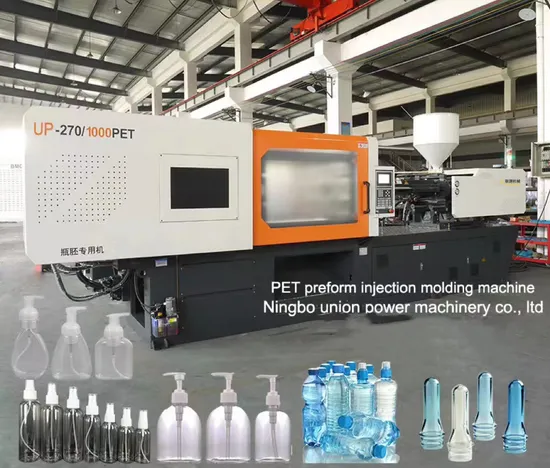

Pet Mold Injection Molding Machine

Product Description

China servo injection molding machine.

A. modulus of capacitance: The position, size, and maximum allowable modulus of capacitance and minimum closure thickness of the injection molding machine guide pillar (Green column).standard injection molding machine manufacturer

B .nozzle parameters: spherical diameter of the nozzle, nozzle aperture, nozzle outer diameter, maximum nozzle extension length, positioning aperture.standard injection machine. C. code mold parameters: code mold hole, slot size.ce standard injection molding machine. D .Ejection mechanism: The position of the ejection point and the diameter of the ejector rod, and if necessary, the ejection force and ejection stroke are also provided.
E. Mold opening stroke and maximum opening distance.plastic injection machine

Technical Parameters	Model UP-230T PET
Injection Unit	A	B	C
Screw diameter (mm)	50	55	60
Shot Volume (cm3)	461	558	664
Injection weight (g)	553	669	796
injection pressure (Mpa)	169	142	121
Screw speed (rmp)	155
Clamping Unit
Clamping force (KN)	2300
Open stroke (mm)	475
Max Mold height (mm)	550
Min Mold height (mm)	220
Space between tie bars(mm)	530*530
Ejector force (KN)	70
Ejector stroke (mm)	135
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	22(21.2)
Heating power (KW)	14.2
Machine dimension (M)	5.8*1.55*2.15
Machine weight (T)	6.3
Oiltank cubage (L)	350

FAQ
1: Are you a trading company or a manufactory?
We are a manufactory, we supply the factory price with good
quality, welcome to visit !
2:Do you have QC or any safety standards for your plastic injection molding machine?
yes,we have established a highly strict quality control department to guanrantee good quality.
3:Why choose our plastic injection molding machine?
High quality with competitive price
4::How about quality control in your factory?
"Quality is first, Customers are friends".
5:Can you help us with the shipment of this machine ?
Yes , with honor ,we have our special shipment company which
already cooperate

---
