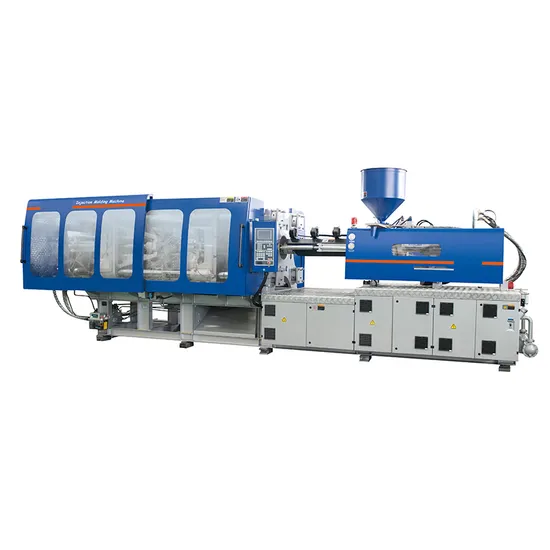

UV/410 PVC Injection Molding Machine

US$1.00-2.00 1 Piece (MOQ)

Basic Info.

Model NO.
UV/410
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Certificate of Origin
1
Certificate of Fumigation
1
Packing List
1
Commercial Invoice
1
Easy Broken Parts
1
Transport Package
Wooden Pallet and Dust Cover
Trademark
K&E
Origin
China
HS Code
8477101090
Production Capacity
200/Y

Product Description

PVC IMM :
Cooling fan installed on barrel,Widened protective door.,Increased motor.
The main production of PVC material pipe fittings
Parameters:
PVC STYLE SPECIFICATION UV/410
SCREW TYPE A B C D
Injection Unit
Screw diameter mm 70 75 80 85
Screw L/D ratio L/D 23.6 22 20.7 19.4
Shot volume(theoretical) CM3 1501 1723 1960 2213
Injection weight(PVC) g 1912 2195 2497 2819
Injection rate g/s 469 539 613 692
Injection pressure MPA 199 173 152 135
Screw speed rpm 100
Clamping Unit
Clamping force KN 4100
Open stroke mm 715(720)
Space between tie-bars(W*H) mm 730*730
Max mould height mm 780
Min mould height mm 250
Ejector stroke mm 180
Ejector force KN 90
Others
Max pump pressure MPA 16
Pump Motor power KW 45.2
Heating power KW 29.3
Numbers of heating area Segment 5+1
Machine dimension(L*W*H) M 7.65*2.05*2.6
Oil tank cubage L 690
Machine weight TON 16

Configuration List:
Name Brand
Computer KEBA(AUSTRIA) or EST
Servo Drive INOVANCE(CHINA)
Servo Pump SUNNY(USA) / SUMITOMO(JAPAN)
Servo Motor PHASE(ITALY)
Electro-hydraulic Proportion valve HNC (Taiwan)
Stroke transducer NOVO or Miran(GERMANY)/GERFRAN(ITALY)
Breaker Schneider (FRANCEN)/Siemens(GERMANY)
Contacts Schneider (FRANCEN)/Siemens(GERMANY)
Switch Schneider (FRANCEN)/Siemens(GERMANY)
Hydraulic Direction Valve Vickers (USA) or Rexroth (GERMANY)
Plasticing Motor DINAMIC(ITALY) or STF(ENGLAND)
Hydraulic Hose MANULI(ITALY)/CONTINENTAI(GERMANY)
Plasticing speed sensor OMRON
Sealing ring HALITE or TREIIEBORG(UK or GERMANY)
