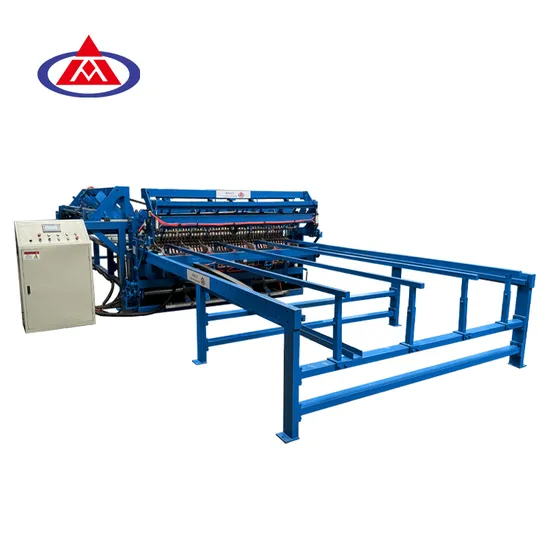

High Quality New 2D 3D Welded Fence Machine Wire Mesh Welding Core Components Motor PLC Gear Manufacturing Retail Construction

Product Description

Product Description
1.1 Our fence mesh welding machine cent-control and welding time are composed of PLC program system . The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, times welding .
1.2 Per-cut line wires are fed by hand.Per-cut cross wires auto feeding with the high production rate,which keep the mesh surface is very flat. The hopper adopts the step motor control ,brake motor wheels and the cross wire will fall automatically from the hopper.
1.3 Our transformers adopts big power at 125KVA every one,which can ensure the welding quality in good condition and adopt water cooling system. Our clients are very satisfied with our new development.
1.4 The greatest advantage is that you can adjust the distance of cross wire at random on the same one piece wire mesh sheet very easily, and only need to set the any space required on the touch screen.
1.5 Pulling mesh way adapts step motor according to the setting parameters into the touch screen,ensures the precision of pulling mesh.

Detailed Photos
Line Wire Dropping Device Automatic Line Wire Pushing Device Automatic Cross Wire Dropping Device Automatic

PLC Touch Screen Control Silicon
Product Parameters

Automatic Line Wire Feeding 2D and 3D Fence Mesh Welding Machine
Item	WZ-1500LA	WZ-2000LA	WZ-2500LA	WZ-3000LA
Number of Electrodes	30/31	40/41	48/51	60/61
Max.Mesh Width	1500mm	2100mm	2500mm	3000mm
Steel Wire Diameter	3.0-6.0mm	3.0-6.0mm	3.0-6.0mm	3.0-6.0mm
Cross Wire Space	50-250mm	50-250mm	50-250mm	50-250mm
Line Wire Space	50-250mm	50-250mm	50-250mm	50-250mm
Cross Wire Feeding Way	By the Special Electric Hopper
Line Wire Feeding Way	By the Special Electric Hopper and Special Sending Car
Pulling Mesh Way	Servo Motor	Servo Motor	Servo Motor	Servo Motor
Electric Capacity	125KVA*4	125KVA*5	125KVA*6	125KVA*8
Welding Speed	50-80t/min	50-70t/min	50-70t/min	50-70t/min
Control System	PLC and Touch Screen

Item	WZ-2000HA	WZ-2500HA	WZ-3000HA
Number of Electrodes	40	48	60
Max.Mesh Width	2000mm	2500mm	3000mm
Wire Diameter	3.0-6.0mm	3.0-6.0mm	3.0-6.0mm
Mesh Length	500-3000mm	500-3000mm	500-3000mm
Cross Wire Space	50-250mm	50-250mm	50-250mm
Line Wire Space	50-250mm	50-250mm	50-250mm
Electric Capacity	125KVA*5	125KVA*6	125KVA*8
Welding Speed	50-70t/min	50-70t/min	50-70t/min
Line Wire Feeding Way	By the Special Electric Hopper
Cross Wire Feeding Way	By the Special Electric Hopper
3D Bending Way	Bending Automatically
Control System	PLC control and Touch Screen

Certifications
Packaging & Shipping
Company Profile
Anping Wanzhong Wire Mesh Products Company entered the wire mesh industry in 2006, specializing in the manufacturing of various types of Fence Mesh Welding Machines, Reinforced Mesh Welding Machines, Automatic Construction Mesh Welding Machines, Breeding Mesh Welding Machines, Chain Link Fence Machines,Cattle Fence Machine, Nail Making Machines, Wire Drawing Machines, Barbed Wire Machines, Razor Barbed Wire Machines,Wire Straightening and Cutting Machine,etc.Wanzhong Company has its own professional R&D team,customized design and production can be carried out according to the special requirements of customers,and has already won fifteen national patents until January 31,2022. It has successfully passed ISO9001-2008,CE certification and SGS certification,and it is recognized as a national high-tech enterprise by our government,and our company credit rating is "AAA".Our machines have already exported to more than 40 countries, including USA,Russia,Algeria,Malaysia,the United Arab Emirates, Kuwait, Yemen, Oman, India, Uzbekistan, Kazakhstan, Iraq, Mexico, Tunisia, Kenya, Tanzania and Egypt.Wanzhong Company has its own professional and experienced after-sales service team, 365 days 24 hours to provide you with the most professional and intimate installation, guidance and maintenance services.

After Sales Service
We supply the detailed guidance and clear labeling in all the connecting place,thus our customers can try to install by themselves.
Special technical engineers supply urgent technical support and consulting,at the same time,we assign one technical engineer to install and debug the machine according to our clients, then our clients will assume round-trip tickets,eating,accommodation costs and ensure him the personal healthy and property safety, and pay 120 salaries per day.
Guarantee: one year. Within one year after the date when the goods reach the destination port if the parts (not including easily damaged parts ) are broken for reasons which are not human, the seller will change the same with a new one free of cost. but the buyer will pay for postage.
