Spray System Pipe Ceramic Nozzle Ss Carbide Ruby Fabrics Shower Piper Felt

Product Description

Felt Shower/ Fabric Shower for Paper Making Fabrics Cleaning Product Description
Shower Pipe Application:
The shower is mainly used in the felt section and forming section. It uses different power to drive the piston shaft and drive high-pressure spray pipe reciprocating motion. It also uses a simple water filter to solve nozzle clogging. Or wet the blanket through a fan nozzle
Wet-End Showers/Fabric Showers/Felt Showers
Our range of built-to-order showers for the wet end of paper machines are ideal for fabric cleaning, lubrication, chemical showers and more. Both brushless and brush-type showers are available to suit your operations.
Manual Brush Showers/Fabric Showers/Felt Showers
Turning the exterior handwheel of the manually operated version rotates the interior brush assembly. During the cleaning cycle, the brushes scrub the interior wall of the shower as well as each nozzle orifice. In seconds, accumulated debris is removed and discharged through the flush-out valve. This restores full liquid flow to the system without contaminating the sprayed surface.
The brush sections are staggered at 120° intervals along the shower so the shower continues to spray during the flush-out operation. Large passages between brush sections allow full flow while the system operates. Brush interference with the nozzle inlets does not adversely affect performance when the flush-out valve is in the full operating position.
Automatic Brush Showers/Fabric Showers/Felt Showers
Our motor/control package offers an economical way to eliminate the need for operator intervention to rotate the brushes. Retrofitting manual brush-type showers is fast and easy. In less than 10 minutes, the motor can be installed on the shower and the control unit mounted in a convenient location for operation. The unit can be set to clean at predetermined intervals, eliminating the need for any operator intervention. The unit can also be placed in manual mode, which enables the activation of individual brushes by an operator.
If you are experiencing nozzle plugging and haven't yet invested in brush-type showers, our Automatic Brush Shower is an ideal solution. Maintenance time due to clogged nozzles can be eliminated. And, because the cleaning cycle occurs without interrupting operation, machine uptime is maximized.
Oscillating Showers/Fabric Showers/Felt Showers
The smooth, controlled movement of cleaning showers across the felt from the Oscillator Shower Assembly ensures optimal felt cleaning with minimal water usage. Users can easily and precisely control the stroke and speed of the oscillator assembly. Settings can be stored or can be adjusted on-the-fly and alarm messages display if the controller detects any operational problems. Operating parameters can even be pre-programmed prior to delivery to further simplify set-up.
The waterproof design withstands washdown and all wetted parts are constructed of 316 stainless steel. The system can be used with showers from 1-1/2" to 4" pipe sizes up to 40' (12 m) in length.

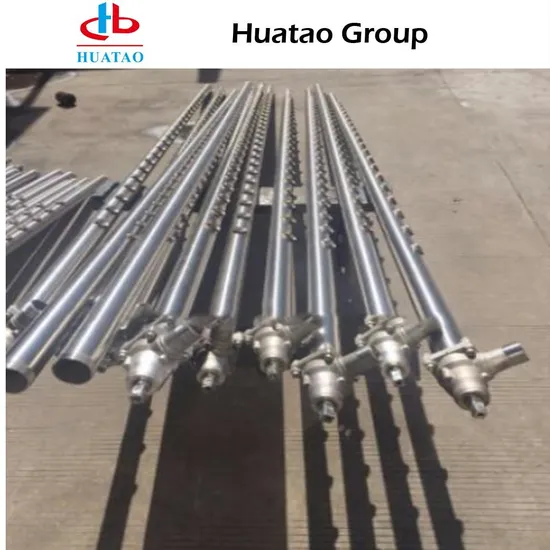

Detailed Photos

Our Professional Team
Huatao Group is set up in 2008. The main business is to serve the pulp and paper industry by providing quality accessories and paper machine renovation services to help customers solve various problems in production, improve production efficiency and reduce energy consumption.
Huatao Group has a professional technician team that is devoted to the pulp and paper industry. We are able to make the best proposal after completely analyzing and figuring out our problems of the paper production line through paper-making progress, equipment, electric automatization and so forth.
We follow the "short process" concept in implementing the customer's projects to reduce energy and water consumption. On the premise of quality assured, the running speed of paper machines are made in the best condition and manufacture cost decreased on the bottom.
In addition to providing equipment, it is more important to provide technical services, including engineering, system integration, and equipment upgrade services.

---
