Conventional Thread Horizontal Lathe

US$3,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

CW6293C/3000

Processing Accessory

pipe and flange type metal workpiece

Guide Rail

Horizontal Guide Rail

Tool Holder

4 Stations Tool Post

Power Source

Electric

Controlling Mode

Artificial

Automatic Grade

Manual

Setting Mode

Floor-type

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Max Swing Over Bed

930mm

Distance Between Centerm

3000mm

Spindle Bore

105mm

Main Motor

11kw

Transport Package

Veneer Case

Specification

CW6293C/3000

Trademark

HAVEN

Origin

China

HS Code

8455

Production Capacity

100units/Month

Product Description

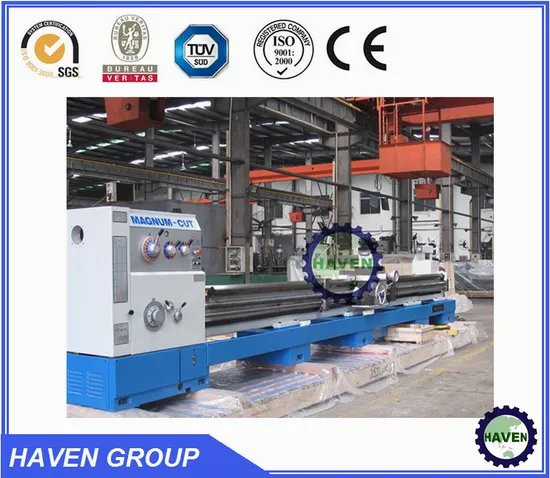

Conventional Thread Horizontal Lathe
Main feature:
This series horizontal lathe has good reputation in this line and populated by customers in domestic and abroad. It including: CW663C, CW6 73C,CW683C, CW693C, ect. Distance between centers are 750mm,1000mm,1500mm,2000mm,3000mm,
4500mm,6000mm
Standard accessory:
3 jaw chuck;4 jaw chuck;dead center;center sleeve;tools;foundation bolt;level adjusting wedge;English manual;
steady rest ;follow rest;
Main specification:

Model	Unit	CW6163C CW6263C	CW6173C CW6273C	CW6183C CW6283C	CW6193C CW6293C
Swing over bed	mm	630	730	830	930
Swing in gap	mm	800	900	1000	1100
Swing over cross slide	mm	350	450	550	650
Distance between centers	mm	750,1000,1500,2000,3000,4500,6000
Length in gap from face plate	mm	300
Spindle nose		Cll or D11
Spindle bore	mm	105,130
Spindle speeds	rpm/steps	10_800/18
Cross slidle travel	mm	480
Top rest travel	mm	225
Rapid traverse	mm/min	:3200, :1900
Quill diameter	mm	90
Quill travel	mm	260
Quill taper		MT5
Bed width	mm	550
Metric threads	mm/kinds	1_240/53
Inch threads	tpi/kinds	30_2/31
Module threads	mm/kinds	0.25_60/46
Diametral pitch threads	Lpi/kinds	60_0.5/47
Main motor power	kw	11
