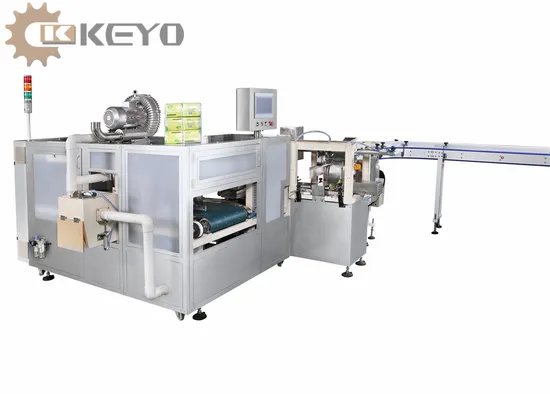

High-Speed Automatic Napkin Paper Packing Machine

Product Description

High-speed Automatic Napkin Paper Packing Machine
Technical parameter

Model	CH-6000A
Design Work Speed	15 bags/min
Stable Work Speed	10~12bags/min
Packing Specification	Single-Row 1x3,1x4,1x5 (Size:L120-210mm*W90-105mm*H60-80mm) Double-Row 2x3,2x4,2x5(Size:L120- 160mm*W90- 105mm*H60-80mm) Special size customized
Feeding Mode	As customer's requirements
Providing Bags	Left and right hanging symmetrical bag storage
Bag Store Quantity	300
Packing Film Material	PE
Total Power	5KW
Power Supply	380V/50HZ
Air Pressure	0.6MPA
Overall Dimension	L*W*H(MM)2600*2200*1500(mm)
Net weight	1000KG
The material conveying line can be designed separately according to the workplace.

Main features and structure characteristics *Adopt advanced PLC control, servo motor drive, high precision electric eye tracking. *Touch screen operation, interface is more clearer and the maintenance is much easier. *Packaging sealing effect is beautiful, neat. *Use prefabricated bagging and double supply bins to transfer from manual production to automated production. *Application of automatic material feeding mechanism to facilitate connection with automatic production line. *Wide range of packaging , allows for fast conversion different sizes.
Kindly Reminder:
We take great pride in our work and in the wide variety of products that we offer.
For offer the right model machine, please tell the following product's info. Thank you in advance.
1. What products will pack?
2. Product's size or bag size (Length*height*width)?
3. Product's photos?
4. Bag type?
5. Packing film material
6. Other special requires.
Packing & Delivery
About Our Company
FAQ & CONTANT US
FAQ & Contact us
Q1. Are you factory or trading company?
We are manufacturer and welcome to visit our factory!
Q2. When can I get the quotation?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
Q3. What's the leading time and shipping way?
It is based on order quantity and machine item! For small order quantity of standard machine, we always have stock. For large quantity of standard machine and other customized machines, it needs 15-45 days. We will confirm details with customers before place order!
If have any interest, please kindly send us inquiry together with your requirement, thank you!
Frank Huang/Sales manager Hefei Chunhui machinery manufacturing Co., Ltd. Address: 3000 Changning Avenue, Gaoxinqu, Hefei 230000, Anhui, China Mobile phone/What'sapp/Wechat: +86 18257313887 Website: http://keyopacking.en.made-in-china.com

---
