Smart Multi Phase RS485 Power Analyzer Kwh Watt Hour Dual Circuits DC Electric Power Energy Meter with Hall Sensor CT or DC Shunt for EV Charger Solar System

Product Description

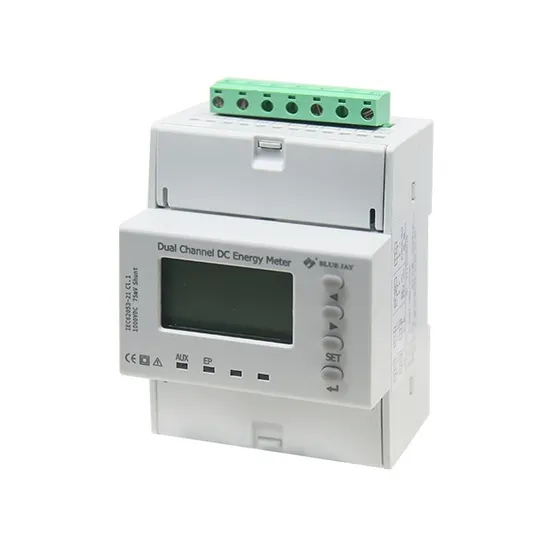

DCEM-4MS Dual-channel DC energy meter is a highly integrated product for DC parameter measurement. When used with a shunt or external Hall sensor, it can accurately measure 1-2 channels DC voltages and 1-2 channels DC currents (with direction), power, total electricity, each single-circuit electricity, and other electrical parameters, and can be equipped with optional DI modules.
DCEM-4MS has RS485 and supports MODBUS-RTU communication protocol, which can upload the collected data and equipment status. DCEM-4MS is widely used in electric power, communications, railways, transportation, environmental protection, steel, and other industries to monitor the current and power consumption of DC equipment.
Feature
Measurement and calculation functions such as DC voltage, current, power, and forward and reverse electric energy. Multi-rate electric energy metering function Maximum demand measurement and demand time recording Maximum value record: single-phase voltage, current, power maximum and minimum values, and occurrence time Time-stamped event recording power freeze Supports RS485 interface MODBUS-RTU communication protocol, and one more RS485 port can be selected 2-way switch input monitoring, 2-way relay output (optional) Supports second DC voltage and current input (optional) Various anti-interference measures. Convenient and flexible system wiring. Easy to install, 35mm standard DIN rail installation. Powerful data collection and processing capabilities. Intuitive Large-size LCD screen real-time measurement information. High security and good reliability A variety of anti-interference measures have been adopted during the design process to ensure stable operation in the power system environment. The electrostatic discharge immunity meets level 4; the electrical fast transient burst immunity meets level 4; the high voltage impact immunity meets level 4; the surge immunity meets level 3; the panel protection level meets IP54, and the shell protection level meets IP20. Specification

Performance			Parameter
Enter Measurement Display	Distribution network		DC
	Voltage	Rating	0-1000V
		Overload	Measurement: 1.2 times Instantaneous: 10 times/1s
		Impedance	>1 kΩ/V
		Rating	DC Shunt:0-75mV
	current		Hall current sensor:5A,20A,50A,100A,200A,300A,400A,500A optional
		Overload	Measurement: 1.2 times Instantaneous: 2 times/10s
		Impedance	<100mΩ
	Accuracy level		Class 1 or 0.5
	Clock (optional):		The daily error is less than 0.5 seconds
	Display		Segment LCD display
Power supply	range		AC/DC85V~265V
	power consumption		≤4VA
Output	Digital interface		RS-485, MODBUS-RTU protocol (optional 2-Channels RS-458)
	Pulse output		Optional 1 channel active electric energy pulse output,1 channel second pulse output
	DI input (optional)		2 DI, dry contact mode
			Ri<500Ω turns on, Ri>100kΩ turns off
	DI output (optional)		2 DO relay
			relay contact capacity: 5A/250V AC; 5A/30V DC
Environment	Working environment		-25~55°C Altitude ≤2000m,98%RH, no condensation, no corrosive gas
	Storage environment		-30~75°C
Safety	Withstand voltage		Input and power supply>4kV; input and output>4kV.power supply and output>4Kv.
	Insulation		Power supply to shell > 5MΩ

Dimension
Application
The DC energy meter can be used for various EV charging station applications from different brands to different KWh EV chargers. It can be used for 7Kwh EV chargers, 11KWh EV charging stations, 30KWh charging piles, 50kwh Charging piles, 60kwh charging stations, 90kwh charging stations, 120kwh charging stations, 150kwh charging stations, 180kwh charging stations, 240kwh charging stations, 350kwh charging stations, 360kwh charging stations, 480Kwh EV Charging stations, etc. Besides, it is compatible with all Brand EV Charging piles such as Ford, Tesla, Tata, Hyundai, Kia, Chevy, etc.
