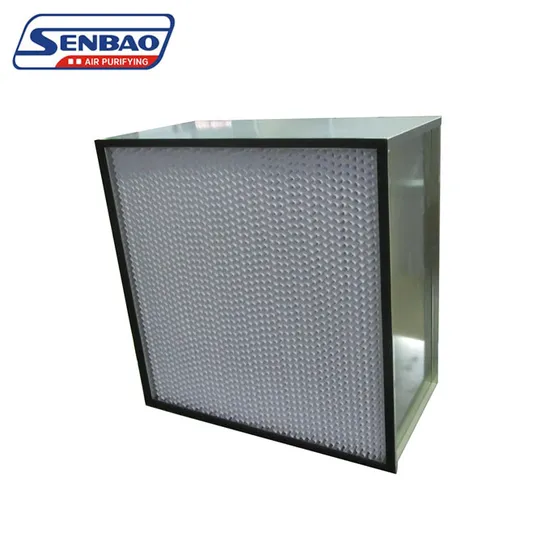

High Efficiency HEPA Box Deep Pleated HEPA Air Filter for Cleaner Air

Product Description

High Efficiency Hepa Box Deep Pleated HEPA Air Filter for Cleaner Air Product Description Deep Pleated Hepa Filter included paper separator hepa filters, aluminum foil separator hepa filters, and high-temperature resistant hepa filters. Used for terminal filtration in various levels of clean rooms and various local purification equipment, such as laminar flow hoods in clean workbenches for environmental air purification.
Features
The wedge-shaped pleat design expertly safeguards the filter media from potential damage. It offers a vast filtration area, producing a large airflow with remarkable efficiency. Built to withstand 100% humidity, ensuring durability in damp conditions. Provides a consistent and even wind speed, delivering impressive dust holding capacity. Highly versatile and adaptable to various environments. Every unit undergoes rigorous 100% factory inspection for quality assurance. Detailed Photos

Product Parameters

Frame	Aluminum alloy; Galvanized
Filter media	wet-laid glass fibre paper
Separator	Aluminum foil / Paper
Sealant	Polyurethane
EN779 class	H11, H12, H13, H14
Final pressure drop	450Pa - 500Pa
Maximum air flow rate	125% of nominal air flow rate
Max operating temperature	80°C
Humidity	≤100% RH

Technical Data

Dimension (mm) H*W*D	Air Speed(m/s)	Rated air flow (m3/h)	Initial pressure drop (Pa)	Efficiency
320x320x220	1	370	≤220	H13
484x484x150	0.75	650	≤220
610x610x150	0.75	1000	≤220
610x1220x150	0.75	2000	≤220
630x630x220	1	1500	≤220
484x484x220	1	850	≤220
610x915x220	1	2200	≤220
610x1220x220	1	2700	≤220
610x305x292	1.5	1000	≤220
610x610x292	1.5	2000	≤220

Note: Custom sizes available upon request for tailored solutions.
Company Profile
Our vibrant workshop is the heart of innovation and quality craftsmanship.
FAQ
1. Can the product be customized? Yes, both the product and the packaging can be customized. 2. How to pay? Our company accepts various ways of payment, such as T/T , L/C etc. 3. How long is the delivery time? It depends on the order quantity. USually it takes about 25 days to produce a full 20' container. 4. Do you arrange the shipment? Yes, our company can arrange the shipment to deliver the goods according to the client's customer's requirements. 5. What about the after-sales service? Our company is responsible for the supplied product within its usage life.

---
