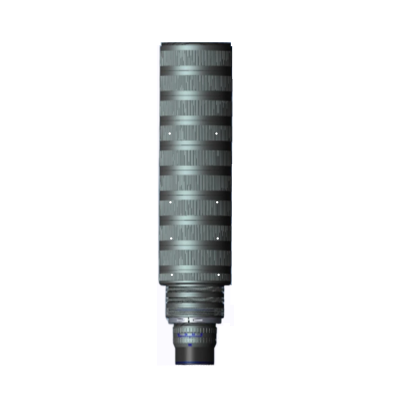

16K HD High Resolution F4.0 146mm 1.755~2.25X Line Scan Industrial Lens

Product Details

Product Description

Product Description

Technical Parameter of Line Scan Lens
Model No.: 02-012-031
No.	Item	Specification
1	Magnification	-0.45X	-0.5X	-0.56X
2	Working distance	417.5mm	383.6mm	357.5mm
3	Conjugate distance	658.7mm	632.4mm	613.5
4	Optical distortion	<0.002%	<0.002%	<0.002%
5	Relative illuminaton	80%	80%	80%
6	Image size	Φ82mm
7	Aperture range/FNO.	F4.0
8	Focal length	146mm
9	ENP diameter	36.5mm
10	Filter size	M95xP0.75
Technical Parameter of Line Scan Lens
Model No.: 02-012-032
No.	Item	Specification
1	Magnification	-0.7X	-0.75X	-0.85X
2	Working distance	304.5mm	285.5mm	267.5mm
3	Conjugate distance	581.2mm	574.5mm	566.1
4	Optical distortion	<0.001%	<0.001%	<0.001%
5	Relative illuminaton	80%	80%	80%
6	Image size	Φ82mm
7	Aperture range/FNO.	F4.0
8	Focal length	146mm
9	ENP diameter	36.7mm
10	Filter size	M95xP0.75
Technical Parameter of Line Scan Lens
Model No.: 02-012-033
No.	Item	Specification
1	Magnification	-1.2X	-1.33X	-1.5X
2	Working distance	216mm	204mm	192mm
3	Conjugate distance	567.2mm	574.5mm	586.5
4	Optical distortion	<0.001%	<0.001%	<0.001%
5	Relative illuminaton	97%	97%	97%
6	Image size	Φ82mm
7	Aperture range/FNO.	F4.0
8	Focal length	146mm
9	ENP diameter	36.7mm
10	Filter size	M95xP0.75
Technical Parameter of Line Scan Lens
Model No.: 02-012-034
No.	Item	Specification
1	Magnification	-1.75X	-2.0X	-2.25X
2	Working distance	179.3mm	168.8mm	154.3mm
3	Conjugate distance	606.1mm	632.4mm	690.4
4	Optical distortion	<0.001%	<0.001%	<0.001%
5	Relative illuminaton	98%	98%	98%
6	Image size	Φ82mm
7	Aperture range/FNO.	F4.0
8	Focal length	146mm
9	ENP diameter	36.5mm
10	Filter size	M95xP0.75

---
