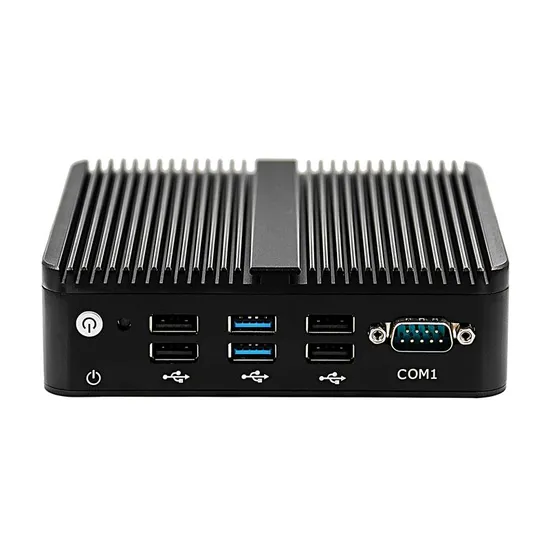

Industrial Mini Computer PC Win 11 Fanless: A robust and compact intel n100 desktop with 4 LAN ports and 6 USB ports, setting a new standard in performance and versatility.
Main Products Feedback Product Description Features:
Powered by Intel J4125/J6246/N100 processors, this mini PC ensures swift and efficient performance.
Equipped with 1 RS-232 serial port for enhanced connectivity.
Incorporates 4x Intel i210/i211 Gigabit LAN ports to meet high-speed networking needs.
Innovative features like one-key restore, watchdog, and diskless boot ensure seamless operation and reliability.
Designed for low power consumption with a fanless architecture, delivering silent and efficient performance.
| PC |
| CPU | Intel® Celeron J4125, 4 Cores, 4 Threads, Base 2.0GHz, Turbo 2.7GHz, Fanless |
| Optional | Intel® Celeron J6246, 4 Cores, 4 Threads, Base 2.0GHz, Turbo 3.0GHz, Fanless |
| Optional | Intel N100, 4 Cores, 4 Threads, Base 2.0GHz, Turbo 3.4GHz, Fanless |
| Memory | 1x DDR4 SODIMM slot, supports up to 8GB |
| Storage | 1x MSATA
1x HDD/SSD |
| Display | 1x HDMI |
| Network | 4 x GbE RJ45 Intel i211/i210i210 |
| I/O | 2x USB3.0, 4x USB2.0, 1x DB9 COM, 1xHDMI, 1x Power LED, 1x HDD LED, 1x Power Button, 1x Reset Button, 1x Power input, 1 x SIM Card Slot, 2 x Antenna port, Be used for WIFI/3G/4G, 4xLAN |
| Expansion Slot | Mini-pcie x1, Full card, Onboard SIM card slot, Support 3G/4G module, WIFI Bluetooth |
| BIOS | AMI EFI BIOS |
| WDT | Support hardware reset (256 level, 0-255 sec) |
| Operation System | Windows® 10, WES 10, LINUX |
| Power Supply |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤20W |
| Enclosure |
| Material | Aluminum Alloy |
| Color | Black |
| Operating Environment |
| Temperature Range | Operating: -20 to 60°C, Storage: -30 to 70°C, surface air flow |
| Relative humidity | 10%~95% , non-condensing |
| Packing Details |
| Net weight | 1 kg |
| Gross weight | 2 kg |
| Product Dimension | 135 x 127 x 38.7 mm |
| Packing size | 30*20*12cm |
| Accessories | Power adapter, Driver CD, 2.5-inch hard drive bracket, Screws |
| Other |
| Mounting (options) | Wall mounting |
| Desktop installation |
| Warranty | 3 years warranty |
