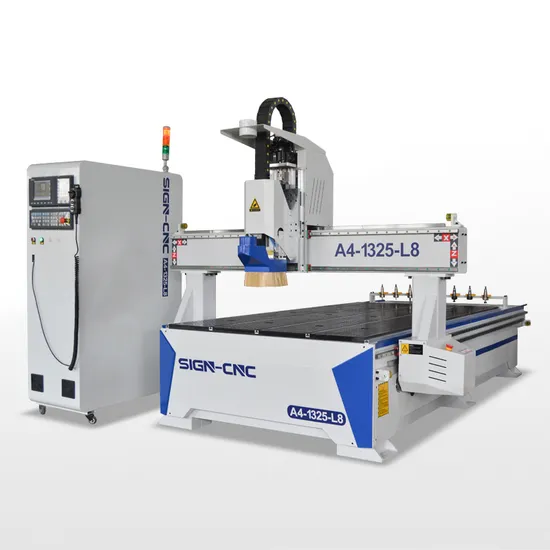

Woodworking Machine Plywood Cutting 1325 Atc CNC Router Machine for Wood Carving

Product Description

Woodworking Machine Plywood Cutting 1325 Atc CNC Router Machine for Wood Carving
Application:
Wood furniture Industry, Furniture decoration, music instrument, wooden arts and crafts, large scale board engraving, solid wood furniture, solid wooden mural, composite door, free-paint door, cabinet doors, advertising industry, Die industry, Relief sculpture, toy production, bedside cupboard, screen sculpture etc.
Materials:
Woods, acrylics, artificial stones, artificial marble, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.
Technical Parameters:

Model	A4-1325-L8	A4-1530-L8	A4-2030-L8
Working area	1300*2500mm	1500*3000mm	2000*3000mm
Z feeding	300mm
Frame structure	Steel casting-welding
Type of table cover	Vacuum table with T-slot
Vacuum pump	5.5kW/7.5kw air cooling
Z axis transmission	Ball screw and 25 square guide rails
X Y axis transmission	TBI / Hiwin 25 square guide rails + rack
Max. Rapid Travel Rate	33000mm/min
Max. Working Speed	25000mm/min
Command Code	G code * .u00 * .mmg * .plt
Operating voltage	AC 380V/50Hz
Spindle power	9.0 KW
Tool Magazine	8 - 12
Type of cooling	Air cooling
Spindle Speeds	0-24000rpm/min
Drive motor type	Servo
operating system	Taiwan SYNTEC
Dust Collector	With
Lubrication system	With
Sensor for positioning the cutter	With
Supported software	Artcam software, Type3 software
Operating conditions	Humidity: 30% -75%, temperature: 15 - 45 degree
Warranty	One year

Contain:

NO.	Name	Features and use	Quantity
1	Frame of machine bed	Large steel tube welding	1 set
2	Gantry	Heavy duty	1 set
3	Spindle	9kw HSD air cooling spindle	1 pc
4	Inverter	11kw Fuling	1 pc
5	Motor	Panasonic servo motor	4 sets
6	Driver	Panasonic servo driver	4 sets
7	Syntec control card	6MA	1 set
8	Hand wheel	Operate for simple work	1 pc
9	Control cabinet	Computer cabinet and electrical component installation	1 pc
10	Guide rails	Hiwin 25 square guide rails	1 set
11	Rack gear	Helical rack and gear	1 set
12	Working table	Vacuum table with T-slot	1 set
13	Vacuum pump	Suction the air between the material and the table to be a vacuum to fix the material.	1 pc
14	Positioning pneumatic cylinder	To fix the plate faster and more accurately, improving work efficiency	1 pc
15	Auto oil lubrication system	Lubrication the rails and rack gear	1 pc
16	Dust collector	3kw double bags	1 pc
17	Tool sensor	Adjust the distance from the tool to the materials	1 pc
18	Tool Magazine	Place of put the cutter with 8 position	1 set
19	Collets	Hold the bit on the spindle	8 pcs
20	Materials holder	Fixing material when engraving	8 set
21	Cutter	Used for engraving and cutting	2 box
22	Connecting cables	Data Cable, Power Cable, etc.	1 set
23	Wrench	Used for change the cutter or routine maintenance	2 pcs
24	L-type screwdriver	Used for L-type screwdriver	1 set
25	Tool box	Loading tools and some gadgets	1 pc

Option:
Samples
Payment methods:

MOQ	1 set
Port of loading	Qingdao, China. Other cities are ok
Time of delivery	15 working days after receiving payment
Payment methods	T/T in advance, 50% deposit, the balance should be paid before shipping

Package:
All the machine parts have been packaging, and whole of the machine with waterproofing membrane. And then have been package use standard wood case (The fumigation-free ), on the case top and bottom have steel tube for support. let it more strong to avoid damage during the transport and for long distance transportation.
FAQ
1. Q: How do you send your machine?
A: We can send our machines by sea, land and rail way, or we can send the machine to your doors.

---
