Anchor Type Weight Indicator Deflection Pressure Gauges

Product Description

Weight Indicator Deflection and Anchor JZ type Product Description
Deflection Weight Indicator System consists of a Gauge and Deadline Diaphragm connected by a high pressure Hose and a C-Clamp to attach the diaphragm to the drill line.
Features:
-12" gauge comes standard.
-Adjustable dampers allow operator control pointer sensitivity.
-48,000-pound maximum single line load with 1 inch drill line .
-Weight Indicator has two pointers, one for weight and the other for sensitivity which is a 6:1 ratio and ideal for work such as setting packers and bridge plugs.
-Standard model comes in a compact box. Large box available to with space for 6" gauges and one circular recorder.
-25-foot heavy duty hose standard. Other lengths available upon request.

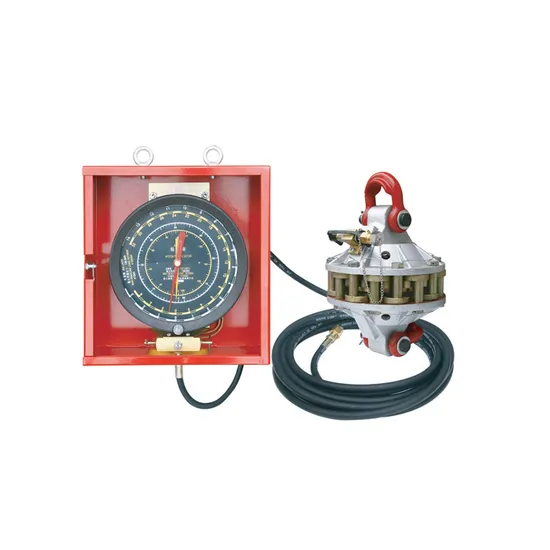

JZ60, 75, 82 Weight Indicator System
JZ series weight indicator system provides drillers with an easy to use and interpret way to track hook load and weight on bit.JZ60, JZ75, JZ82 are made up of sensor and pressure gauge.Also we can add an recorder according to customer's demand.
Accuracy class:
Sensor accuracy: 1.0%
Gauge accuracy: ±1.0%
System accuracy: ±2.0%
Working temperature: - 40C ~50C
Wireline Weight Indicators Ideally suited for used by wireline service trucks.
Features:
-6" & 8.5" fluid filled gauge with dial faces available in decanewtons, pounds, kilograms, or dual scale.
-Damper system allows operator to increase or decrease sentivity easily to monitor the minutest changes.
-Each system is calibrated in our factory and is shipped precharged and ready to use.
-Calibration and line pull certificates are sent with the system.
-Available in the following capacities: 1000, 2000, 3000, 4000, 5000, 6000, and 10,000 pounds.
Electronic Meters are the industry standard that all others are compared to. These simple and rugged meters can be used to display and function that you have a requirement for.
Features
• Panel Mount configuration allows easy replacement of standard 6" hydraulic gauge.
• Electronic movements have proven to be reliable even in the harshest of environments
• Various inputs accepted; 0-5vdc, 0-10vdc, 4-20ma
• 270^ sweep or 360^ degree sweep
Benefits
• No limits to the applications available
• Easily adaptable to any PLC or as a stand-alone meter
• DC Brushless or Taut Band models available
• Analog display of digital signal is far easier to read than digital display


Detailed Photos

Product Parameters
Accuracy class:
Sensor accuracy: 1.0%
Gauge accuracy: ±1.0%
System accuracy: ±2.0%
Working temperature: - 40C ~50C

Model	Max Deadline Tension (kN)	Number of Lines	Load (kN)	Output Pressure (MPa)
JZ60	100	6	600	4.2
		8	800
JZ75	125	6	750	5.2
		8	1000
JZ82	136.6	6	819.6	6
		8	1092.8

Company Profile
FAQ
1) How can I place an order?A: You can contact us by email about your order details, or place an order online.2) How can I pay you? A: After you confirm our PI, we will request you to pay. T/T and Western Union are the most usual ways we are used. 3) What's the order procedure?A: First we discuss order details and production details by email or TM. Then we issue you a PI for your confirmation. You will be requested to do a prepaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 15-25days if we don't have the items in stock. Before production has finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you. 4)How do you take care when your clients received defective products?A: replacement. If there are some defective items, we usually credit them to our customer or replace them in the next shipment. 5)How do you check all the goods in the production line?A: We have spot inspection and finished product inspection. We check the goods when they go into the next step production procedure.

---
