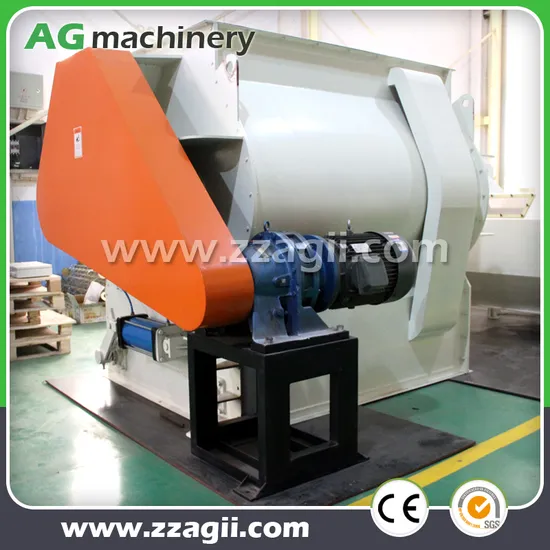

Horizontal Animal Feed Mill Mixer Twin Shaft Paddle Mixer Machine

Product Description

Horizontal Type Animal Feed Mixer, Paddle Mixer Blender
Brief introduction:
HJ series horizontal ribbon mixer is suitable for concentrated feed, powdered feed mixing. Specially designed nesting institutions open angle, rapid discharge, fast discharge, few residues. Double helix ribbon hybrid mixed in no dead ends, short cycle. Designed with liquid oils to add pipe. Pneumatic or manual door opening mechanism, convenient and reliable. The novel structure of the rotor gap between the rotor and the casing can be adjusted to near zero. Main Parameter:

Model	HJ 50	HJ 71	HJ 80	HJ 100
Effective volum (m³)	0.2	0.5	1.0	2.0
Mixing Amount (kg/batch)	120	250	500	1000
Mixing uniformity (Cv≤%)	≤6	≤6	≤6	≤6
Each batch mixing time (s)	3-5	3-5	3-5	3-5
Spindle speed (r/min)	54	42	34	34
Power (kw)	2.2	4	7.5	18.5
Weight (kg)	288	478	766	1600
Dimension (m)	1.55*0.9*.1.1	2*1.22*1.15	2.6.1.1*1.4	3.1*1.8*1.61

Features:
1. Quick mix speed, short mix period, 30-90s/batch, high mix uniformity, CB<5%,not producing segregation.
2. Pneumatic big open door for materials discharging, fast outing, low left rate, the air bag seal slice sealing, good seal.
3. Set wind revolving pipe, no powder dust leak, fully satisfy the environment requirement.
4. Can make special use foggy spraying system, adding sugar, honey, oils, more evenness.
5. Widely used the powder, pellet, slice, mass materials mixing of feed, food, chemistry, fertile industries.

Advantages:
* Application:
Applicable to a wide range of industries materials mixing, effective volume in body; you can add a variety of liquids (such as water, molasses, oil, etc)
* Good quality:
Smooth, gentle mixing, do not damage the original characteristics of materials.
* High production efficiency:
Mixed short time (45-60/batch), mixed with coefficients of variation (CV) is less than 5%, and tons of small power consumption.
* Fewer residues:
Original "machine full length double door" patented technology, the material quickly and maximum possible reduction residues.
