24-Port Gigabit Ethernet and 2 Giga SFP OEM Network Ethernet Managed Switch Network

Product Description

Fibridge F6C-5800-M24GT2S series network switch is a high-performance Ethernet access equipment developed by Beijing Fibridge. It has 24* 10/100/1000 Mbps Ethernet interface and 2*Gigabit FX.
With corresponding network management software, it can realize the management functions such as Port Status Query, port configuration, configuration download, upload, system log and alarm record display.
The series can be embedded with management module, providing Console and Ethernet two types of management connectors, supporting Console, WEB, Telnet and SNMP management.
The device is built-in power module, you can choose 220V AC input or 48-56V DC input.The F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet. The series' working temperature is 0ºC to +70ºC,10%~90(no condensation). PoE+ function is optional.
Product Features Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.3at/802.3af/802.1p storage-and-forward
Meet the requirements of reliable work in harsh electrical environment
Support enquiry and configuration to the status of each port, including connection status, rate, duplex, closed, Port.
Support flow control
Support STP/RSTP/MSTP/EAPS/ERPS;
Support IGMPv1/2/3 and MLDv1/2 Snooping;
Support GMRP protocol registration
Support ACL
Support SSH V1/V2/HTTPS
Support ROMN
Support safe visit control, support RADIUS/TRCACS+
Support system operation log
PoE is optional
Support overload protection.
Support reverse connection protection
Support optical port hot plug.
IP 40 protection level.
Industrial and modular design ensures the product's reliability and flexibility.
ISO9000 qualified
Pass test by Ministry of Public Security
Obtain network qualification certificate.

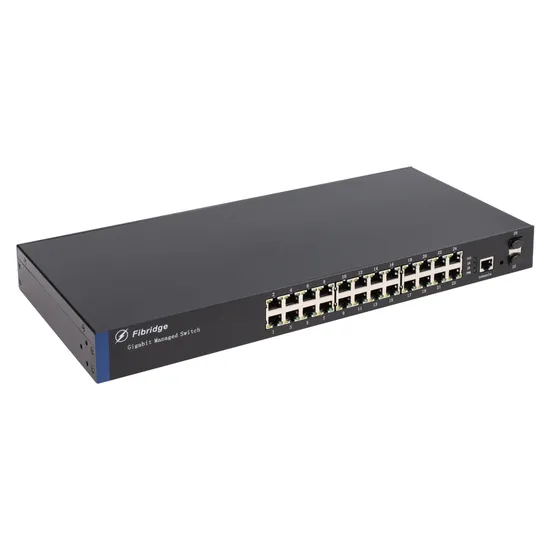

Detailed Photos

Product Parameters

Network Characteristics
Ethernet Protocol	Support IEEE802.3/802.3u/802.3x/802.3Z/802.3AB storage-and-forward
Flow Control	IEEE802.3x flow control, back pressure flow control
Network Interface	OPT: 1000MBase-FX Single/multimode SC/FC/SFP ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLAN	802.1Q standard VLAN
MAC Addresses	12K
Jumbo Frame	Max 9K
Cache	4MB
Packet Buffer	56Gbps
Packet Forwarding Rate	41.664Mpps
Management	WEB, Telnet, Console, SNMP
Optical Characteristics
Optical Interface	SC/FC/SFP(Optional)
Fiber Core Count	Single / Dual core transmission
Wavelength	1310nm/1550nm(850nm)
Fiber Mode	Single Mode / Multimode
Environmental Characteristics
Temperature & Humidity	Working temperature: 0ºC to +70ºC Storage temperature: :-40ºC to 85ºC Working humidity:10%~90% RH No condensation Storage humidity: 5%~90% RH No condensation
Power	AC 100-240V/50-60Hz 260W Built-in switching power supply DC12V 3A external DC power
MTBF	≥100000 hours

Ordering Information

Model	Port	Management
F6C-5800-M24GT2S	24*10/100/1000MBase-T(X) auto adapt RJ45 2*1000MBase-FX SFP	Web Telnet Console
F6C-5800-M24GTP2S	24*IEEE802.3at/af standard PoE 2*1000MBase-FX SFP	Web Telnet Console

Business Terms
Price is FOB Beijing, 1 years warranty.
Price doesn't include SFP modules.

About Fibridge Established in 1995; 28 years' experience tells our reliability and high reputation. Full product series, including Industrial Switch, optic telecommunication and Video surveillance series. Products have been exported to more than 110 countries. Successful application of Industrial switch in Railway, Metro, Smart city, Highspeed road, etc.
Packaging & Shipping

---
