Basic Info.
Automatic Two-sided Printing
Not Support Automatic Two-sided Printing
Supply Paper Mode
Automatic and Manual Integration
Network Function
Optional Network
Consumable Type
Thermal Receipt Paper
Character Structure
Dot Matrix Character Printer
Application
for Commercial
Printing Method
Thermal Line Printing
Paper Roll Diameter
Max.83mm
Lifespan
Head 150km,Cutter 1.5 Million Cuts
Color
Black or White Option
Name
Factory POS Thermal Printer with Bluetooth in Stoc
Transport Package
Standard Export Package
Specification
146*191*129mm
Production Capacity
10000 PCS / Month
Product Description

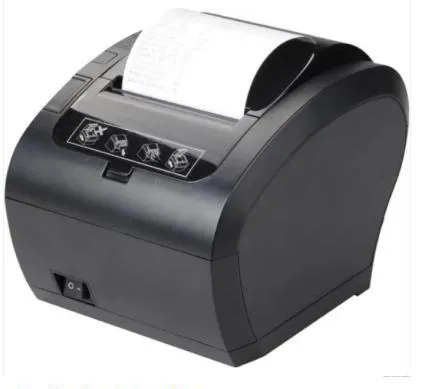

Factory 80mm POS billing thermal receipt printer with Auto cutter
Our OA-48 printer is an 80mm desktop thermal receipt printer.
*It is our most Clients chose OEM products in mid -high end of printer.
*The printing speed can reach 230-300mm/s,
*The quality is sturdy and durable,the high-end precision print head, the printing length can reach 150KM, the number of cutters is 1.5 million times.
*The appearance Smooth, atmospheric.
If you need mid-high thermal receipt printer,this is your good first choice.
Specification:
Main features: • Fast printing of text and images • Long lasting auto-cutter up to 1.5million cuts • Friendly utilities,virtual usb or usb hid setting by utilities • Support 8 kinds of different paper width(Option) • Support wall mounting(Option) |
| Model | | OA-48 |
| Printing | Print Method | Direct Thermal |
| Print Speed | 260mm/s |
| Resolution | 576dots/line or 572dots/line |
| Printing Width | 72mm |
| Paper separator(option) | 48mm/52mm/56mm/64mm/68mm/76mm/80mm |
| Interface | USB+Lan/ USB+Serial/ USB+Serial+Lan/ USB+Serial+Lan+BT |
| Page Mode | Support |
| Memory | Input buffer | 256kbytes |
| NV Flash | 256kbytes |
| Fonts | Font A | 12x24 |
| Font B | 9x17 |
| Chinese | GB18030,BIG5 24x24dots |
| Japanese/Korea | Support |
| User-defined | Support |
| | Power , Paper,Erro | Support |
| Kichen Function | LED light with beeper | Without |
| | Hanging device | Equipped |
| Barcode | 1D | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 |
| Detection | Sensors | Paper out, paper near end, cover open, cutter jam,paper jam and black mark detection(Optional) |
| Power Supply | Input | AC 100V-240V 50/60HZ |
| Output | DC 24V/2.5A |
| Paper | Paper Type | Thermal Receipt Paper |
| Paper Width | 48mm/52mm/56mm/64mm/68mm/76mm/80mm |
| Paper | Paper Thickness | 0.06~0.08mm |
| Roll Dia | Max. Ø 83 mm |
| Paper Load | Easy paper loading |
| Paper Cut | Manual tear or Auto-cutter |
| Physical Characteristics | Working Condition | 0°C~45°C, 10%~80%RH |
| Storage Condition | -10°C-60°C,10%~90%RH |
| Dimensions | 191(D)x146(W)x129(H)mm |
| Net weight | 1.94kg | Gross weight | 2.14kg |
| Reliability | Printing head | 150KM |
| cutter | 1.5million |
| Accessories | | data cable,power adaptor,power code,paper roller,CD,manual,paper separator(option) |
| Packing | Individual box | Dimension 25X20X16cm(LXWXH) | 1unit/carton |
| Master carton | Dimension 63X27X35cm(LXWXH) | 6units/carton |
| OS | Emulation | ESC/POS |
| Driver | Windows XP /Vista/ Win7/Win8 /Win10/Win 2000/Win CE/OPOS/JPOS |
| SDK | Android, IOS |
Details of Printer:
Features of Printer:
Package of Printer:
Thermal paper loading & printing effect:
Our Factory Production line : We have POS production 6 lines , Printer production line 2 lines , 1 line special for study Working new production
Many Partners in different Countries ask us To OEM their Brand to Offer Many Famous Brand Supermarket ,Chain stores , Restaurant ,Hotel for many years in Good quality and increasing re-orders always in Fully Trusting .
Our good sale POS terminal:
Our Shipping by Air , By container in Seaway , By car in Road or By Railway to different Countries in most save money , fast way for each of our partners with our machines .
About us : Our factory located in Guangzhou City, Which the City ,quality materials using control well than other Area .
We offer OEM /ODM service for our products for each of our partner in different Countries.
We aiming to the products we produced and offerd to you better than others in most market have . You do not need worry Quality , Do not need worry After sales service ,
Be happy with our service and fast speed of dealing business for long term business . Doing business with us will save time for you , save money for you , save problem for you .My Name is Cherry , Yours reliable trusting friends.
