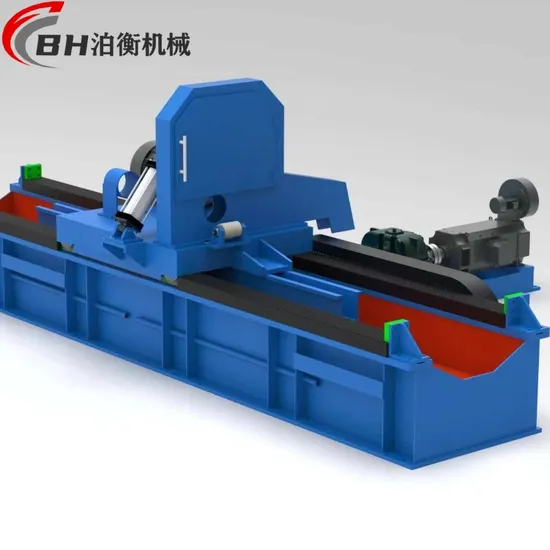

Hg50 Round Steel Pipe Production Line/Steel Pipe Making Machine

Product Description

Product Parameters

Model	Tube O.D (mm)	Thickness (mm)	Square&Rectangle (mm)	Thickness (mm)	Speed (m/min)
HG16	φ6~16	0.2~0.8			30~120
HG20	φ7~20	0.2~1.0			30~120
HG25	φ9~25.4	0.25~1.2			30~120
HG32	φ10~32	0.25~1.5	8X8~25X25	0.25~1.2	30~120
HG32		0.3~2.0	10X6~30X20	0.3~1.5	30~100
HG40	φ12.7~40	0.3~1.8	10X10~30X30 20X10~40X20	0.3~1.5	30~110
HG40		0.4~2.0		0.4~1.5	30~100
HG50	φ16~50.8	0.4~1.5	12.7X12.7~40X40 20X10~50X25	0.4~1.2	30~110
HG50		0.5~2.0		0.5~1.5	30~90
HG50		0.6~2.5		0.6~2.0	30~80
HG63	φ19.05~63.5	0.6~2.0	15X15~50X50 20X10~60X30	0.6~1.5	30~90
HG63		0.7~3.0		0.7~2.5	30~80
HG63		0.8~4.0		0.8~3.0	20~70
HG76	φ25.4~76.2	0.8~2.5	20X20~60X60 30X15~80X40	0.8~2.0	30~90
HG76		0.8~3.5		0.8~3.0	30~80
HG76		0.8~4.0		0.8~3.5	20~70
HG95	φ30~90	0.8~3.0	25X25~70X70 30X20~80X40	0.8~2.5	30~90
HG95		0.8~3.5		0.8~3.0	30~80
HG95		0.8~4.0		0.8~3.5	20~70
HG102	φ31.8~101.6	1.0~3.0	25X25~80X80 30X20~100X50	1.0~2.5	30~90
HG102		1.0~3.75		1.0~3.0	30~80
HG102		1.0~4.25		1.0~3.5	20~70
HG114	φ35~114.3	1.0~3.0	30X30~90X90 40X20~120X60	1.0~2.5	30~80
HG114		1.2~4.25		1.2~4.0	20~70
HG127	φ40~127	1.2~3.5	30X30~100X100 40X20~120X80	1.2~3.0	20~70
HG127		1.5~5.0		1.5~4.5	15~60
HG140	φ50~141.3	1.2~4.0	40X40~110X100 50X30~150X70	1.2~3.5	15~60
HG140		1.5~5.5		1.5~5.0	15~60
HG168	φ60~168.3	1.5~5.0	50X50~130X130 60X40~160X80	1.5~4.5	15~50
HG168		2.0~6.0		2.0~5.5	15~50
HG168	φ76.2~168.3	2.5~8.0	60X60~130X130 80X40~160X80	2.5~7.0	10~40
HG219	φ89~219.1	2.0~6.0	70X70~160X160 100X50~200X100	2.0~5.5	10~40
HG219		3.0~8.0		3.0~7.5	10~40
HG219		4.0~10.0		4.0~9.0	10~40
HG273	φ114.3~273	4.0~10.0	90X90~200X200 120X60~260X130	4.0~9.0	10~40
HG273		4.5~12.0		4.5~11.0	10~35

Production Process Flow
Detailed Photos
Factory
Certifications
Company Profile
Botou Boheng Metallurgical Equipment Manufacturing Co., Ltd. is a leading manufacturer of high-end cold-bending equipment, producing 100 sets annually. We specialize in straight seam welded pipe equipment, molds, and cold-bending machinery, offering research, production, sales, and service.
Key Features: Reliable Quality: Known for stable performance, cost-effectiveness, and advanced technology. Global Reach: Our products are trusted across China, Southeast Asia, the Middle East, South America, North America, and Europe. Precision Engineering: Using advanced software for optimized designs and precise installation plans. Advanced Manufacturing: State-of-the-art equipment and digital testing ensure top quality. After-Sales Support: Professional service from pre-sale to post-sale, ensuring customer satisfaction. We welcome you to visit our company and explore cooperation opportunities. Quality and trust are the foundation of our business.
FAQ
Q: Are you manufacturer?
A: Yes, we are manufacturer. We have our own technical team. Welcome to visit us.

Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!

Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements and speed of the machine.

Q: How do you do QA?
A: We have special team do strict QA, this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of tolerance critical parts will be inspected for all dimensions.

Q: Why choose you? What is the difference between you and other Chinese supplier?
A: You can get higher quality product & better professional service from YONGYUE with same price.

Q: What I should do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service.
After Sales Service
Q: I'm worried about after-sales service!
A: Warranty is one year.
Any parts damaged during warranty will be replaced for free!
We provide spare parts for life time at cost price.
Electrical parts such as boards and servo drives,we`ll provide them for life time as well at cost price.
Our engineers are available to service overseas!

---
