1ly-425 80-110HP Tractor Mounted Heavy Duty 1m Working Width 4 Discs China Disc Plough for Sale

Product Description

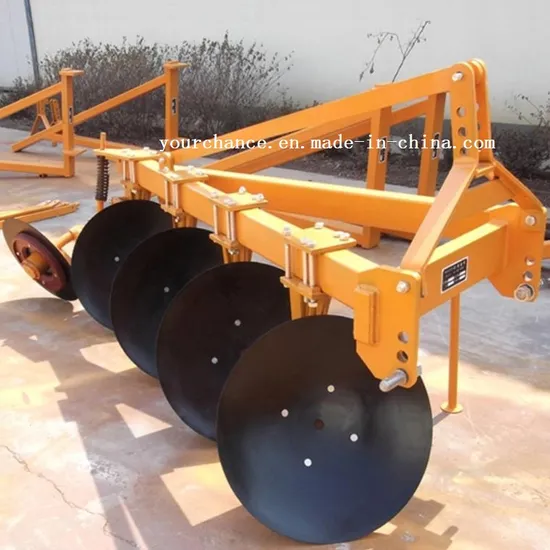

1LY-425 80-110HP tractor mounted Heavy duty 1m working width 4 discs China Disc Plough for sale
1LY Series Disc plough Main Features:
Disc plough is completely mounted with Tractor, during operation the discs by its rotating to turn the soil, particularly, it is suitable for operation on the field with grasses, straw and stems of crops or plants, big soil resistance and with many stones and brickbat, etc in the field.
It is good at cutting the grasses and straw and free from topped by the grasses,soil or stones, etc.
Main Specification and Technical Parameters:

20 Series
Model	1LYQ-220		1LYQ-315			1LYQ-320			1LYQ-420
Working width (mm)	400		450			600			800
Working depth (mm)	200		180			200			200
Disc diameter (mm)	510		460			510			510
Quantity of disc(Pcs)	2		3			3			4
Weight (kg)	150		180			200			260
Matched tractor power (HP)	18-30		25-30			25-40			40-55
Linkage	Standard three-point mounted
25 Series
Model	1LY-225	1LY-325			1LY-425		1LY-525			1LY-625
Working width (mm)	500	750			1000		1250			1500
Working depth (mm)	250	250			250		250			250
Disc diameter (mm)	660	660			660		660			660
Quantity of disc(Pcs)	2	3			4		5			6
Weight (kg)	400	420			480		530			570
Matched tractor power (HP)	40-55	50-80			75~110		100~140			120~160
Linkage	Standard three-point mounted
30 Series
Model	1LY-230			1LY-330				1LY-430
Working width (mm)	300			900				1200
Working depth (mm)	300			300				300
Disc diameter (mm)	710			710				710
Quantity of disc(Pcs)	2			3				4
Weight (kg)	430			490				570
Matched tractor power (HP)	45-60			55-80				90-110
Linkage	Standard three-point mounted

High quality Disc plough have ISO,CE, PVOC COC, CO etc certificates:
Disc Plough by Iron crate box Packing :
Best price will be quoted for you as soon as receive your Requirement !

---
