7/8 Inches Feeder Cable Helix Copper Tube RF Coaxial Cable for Wireless Mobile Communication System

Product Description

Product Description

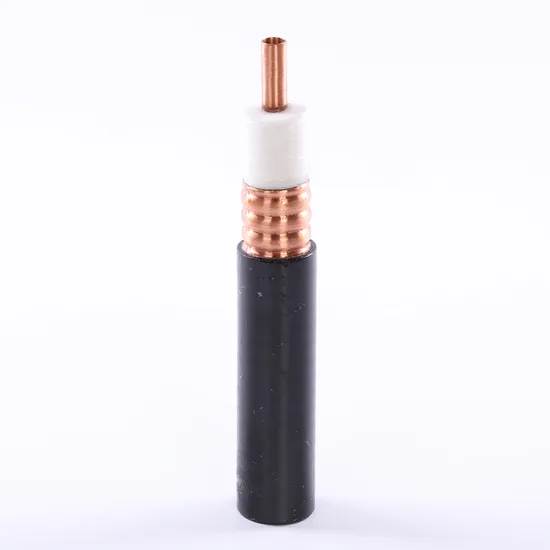

7/8 Inches Feeder Cable Helix Copper Tube RF Coaxial Cable For Wireless Mobile Communication System
Inner conductor is copper clad aluminum, smooth copper tube or helix copper tube is also avaliable for inner conductor as different options. insulation is high physically foaming PE. Outer conductor is corrugated aluminum tape. PE for outer jacket.
Applications:
metro stations wireless In-building solutions tunnels Wireless mobile communication Microwave telecommunication Military use Specification:

construction	Testing item		Unit	Standard
	Inner conductor	material	-	helix wrinkle copper tube
		diameter	mm	9.00
	Outer conductor	material	-	corrugated aluminum tape welded
		diameter	mm	25.10
	jacket	PE or halogan free	mm	27.70
mechanical performance	single bending radius		mm	140
	repeated bending radius		mm	270
electrical performance	inner conductor resistance		Ω/km	≤1.65
	outer conductor resistance			≤1. 65
	Capacitance		pF/M	76
	Characteristic impedance		Ω	50+/-1
	Velocity		%	88
	Attenuation 20ºC(max)	150MHZ	dB/100m	1.85
		280MHZ		2.55
		450 MHZ		3.25
		800 MHZ		4.37
		900 MHZ		4.65
		1500 MHZ		6.08
		1800 MHZ		6.69
		2000 MHZ		7.07
		2400 MHZ		7.79
		3000 MHZ		8.78
	VSWR	0.01GHz-3GHz	-	1.20
		820MHZ-960MHz		1.15
		1.7GHz-1.9GHz
		2.1GHz-2.2GHz

Company Profile
Competitive Advantage:
>. Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000. Over 18 years of experience on coaxial cable, we have been in business partnership with multi-national cable companies since 1994. Our Advantages Hot Product
FAQ
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and/or design on goods are available.

Q: May I visit your factory?
A: Sure, welcome any time with prior notice.

Q: Can your company accept customize?
A: Yes, we can produce based on customization requirements practicable for us.

Q: What's your delivery time?
A: Products with stock available will usually be ready for dispatch within one working day since PO confirmed and deposit received; Products to be manufactured takes several days to several months depending the item types and quantity.

Q: How do you solve after sale service?
A: Any after-sales inquiry will be treated within 24 hours once received written notice from client via email, express mail, etc. Your request will meet our active response to furnish satisfying solution for you.

Q: Can you send a sample for us to develop?
A: We can provide samples of mature technical processing line; while special types shall be treated with technical appraisal before confirmation of sample availability. And samples can be provided free of charge or at cost price depending on specific sample type. Fees for transportation of the sample shall be assumed by client.

---
