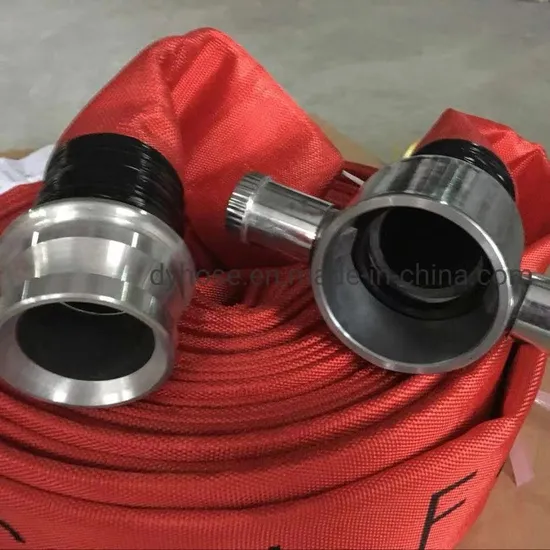

Red High Pressure Double Jacket Water Pipe Fire Hose

Product Description

Product Description Description
Constructions:
Inside:High quality,seamless and smooth of EPDM Lining(or TPU,PVC,NR Lining)
Outside: Single Jacket of 100% high tencity polyester yarn,circular twill or plain woven.
Features:
Very light and flexible hose quality Suitable for sea water,hot water, many chemicals. EPDM Lining:extremely light weight,good resistance to ozone and oil,long service life,remains flexible to -50ºC PVC Lining:Light weight,high performance cost ratio Nature Rubber lining:Flexible,good abrasion and corrosion resistance, operate in a temperature range from -30 to +85ºC Application:Fire fighting,shipping, petroleum,Agriculture,Mining, Garden.
Color:White,yellow, red, or as customer's instruction
Standard:UL,FM,MED,EN14540,UNI9487,NFPA, or as customer's requirements.
Length:10-40M
Technica Data Sheet

Diameter		Working Pressure			Burst Pressure
Inch	mm	BAR	MPA	PSI	BAR	MPA	PSI
1"	25	13 to 25	1.3 to 2.5	190 to 365	39 to 75	3.9 to 7.5	570 to 1090
1-1/4"	32	8 to 25	0.8 to 2.5	120 to 365	24 to 75	2.4 to 7.5	350 to 1090
1-1/2"	38	8 to 25	0.8 to 2.5	120 to 365	24 to 75	2.4 to 7.5	350 to 1090
1-3/4"	44	8 to 25	0.8 to 2.5	120 to 365	24 to 75	2.4 to 7.5	350 to 1090
2"	51	8 to 25	0.8 to 2.5	120 to 365	24 to 75	2.4 to 7.5	350 to 1090
2-1/2"	64	8 to 25	0.8 to 2.5	120 to 365	24 to 75	2.4 to 7.5	350 to 1090
2-3/4"	70	8 to 25	0.8 to 2.5	120 to 365	24 to 75	2.4 to 7.5	350 to 1090
3"	75	8 to 25	0.8 to 2.5	120 to 365	24 to 75	2.4 to 7.5	350 to 1090
4"	102	8 to 16	0.8 to 1.6	120 to 235	24 to 48	2.4 to 4.8	350 to 700
5"	127	8 to 13	0.8 to 1.3	120 to 190	24 to 39	2.4 to 3.9	350 to 570
6"	152	8 to 13	0.8 to 1.3	120 to 190	24 to 39	2.4 to 3.9	350 to 570

Approved fire hose Production Workshop
Hot Products
Company Profile
Packaging & Shipping
Shipping Different amount of time will be required for difference FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in plastic bags for inner package.Out package you could choose the carton box or woven bags.
Q2. What is your terms of payment?
A: T/T ,30% In Advanced, and 70% Before delivery,Or L/C. The pictures of products detials and packages will be sent before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take within 10 to 30 days as receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.But the delivery charges will be deducted from the customer's future order.
Q6. Do you test all your goods before delivery?
A: Yes,we have three inspection steps to make sure the products you received in high quality.
Q7: Are you accept the OEM?
A: Yes,we support the OEM or ODM.
Q8: Our port of shipment?
A: Qingdao,China or as your request.

---
