Angle Root Milling Machine for Angle Steel Tower

Product Description

TGQ250 Angle root milling machine
Applicable Industry:
The machine used for milling angle root mainly in the field of angle steel tower industry, electric power fittings, structure storage facilities, and steel structure construction industries etc.
Product Feature:

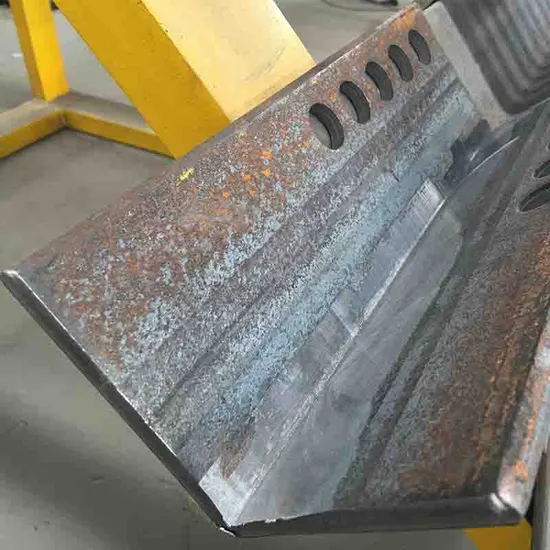

By installing special cutter of a few cutting blade , high speed milling and high efficiency, surface roughness is good, one time molding process. According to request it can do a single-stage and continuous cutting. Operation of this machine is simple, reduced operational requirements of workers. Machine with high degree automation, can achieve a continuous, intermittent feeding, effectively improve work efficiency; process one size L180 × 180 × 18 length 800mm angle, for about 2-3 minutes, one worker can operate two machine together. Compared with the traditional planer, this machine overcome the problems that limited length, interposed complicated , the processing length unlimited, without the workpiece clamping device so that the processing is more convenient, reducing the labor intensity, greatly improving production efficiency. Simple operation, flexible adjustment and stable operation. Multi -purpose machine, can complete continuous feed and cutting length. With the air pressure protection device to prevent the safety accidents caused by low pressure. SPECIFICATIONS:

Model	TGQ200	TGQ250
Total power	10KW	7KW
Single-spindle power	4KW	3KW
Power supply	380V,50Hz	380V,50Hz
Air supply	0.6MPa~0.7MPa	0.6MPa~0.8MPa
Cutting Speed	150~400rpm	0~400rpm
Diameter of cutting plate	100mm	120mm
Feeding speed	230~500mm/min	0~500mm/min
Rotation of spindle	450rpm	400rpm
Quantity axis	2	2
Quantity feeding motor	2	2
Quantity pressure cylinder	4	4
Angle processing size	L63~L200	L63~L200
Length of angle	300mm~+∞(Processing length unlimited)	350mm~+∞(Processing length unlimited)
Mode pressure	Have the function workpiece automatic positioning
Overall dimensions	2250×1290×1900mm	2250×1290×1900mm

---
