Selcom Type Elevator Landing Door Opening Core Series

Product Description

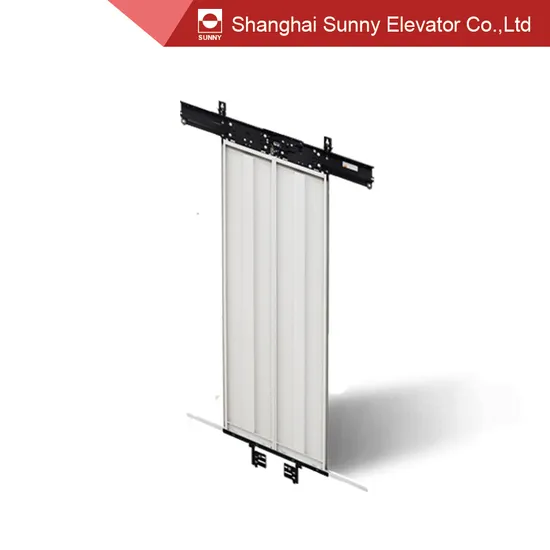

Selcom Type Elevator Landing Door Opening (SN-CORE)
Model Name: SN-CORE
Description Landing door +door panel+ door jamb+sill
SAFETY
· Anti-dropping hooks on the door panel for sill (patented) and back of truck
PERFORMANCE
· Bearings mounted on all truck, synchronisation and counter rollers
· Arc-shaped, double rail guiding profile
· High-performance PA landing lock rollers
RELIABILITY
· Trapezoidal rail support increases radial force resistance
· Black electrophoresis treatment for all key parts in the landing door hanger
EASY INSTALLATION
· 3D adjustable interface to panels
· Single adjustment for lock rollers
· Light weight and reduced number of parts for fast installation
· Asymmetric bottom shoes
· Integrated reclosing device
· Hook for mechanism
EASY MAINTENANCE
· Most components are assembled with screws and replaceable including brackets on side frames
· All components are easily accessible
PRODUCT PARAMETERS & RANGE

Door Type	C2
Sill Depth	40 mm
Side Frame Dim.	50 mm × 40 mm
Top Frame Dim.	50 mm
Options	Grout Guard
Sill Load	400 Kg
Lift Speed	up to 2.5 m/s

CO mm	700	800	900	1000
CH mm	2000-2100

CO = Clear Opening
CH = Clear Height
Why choose us?
Shanghai Sunny Elevator Co., Ltd, founded in 1992, is a 32-year professional manufacturer specializing in designing and producting Opto-Electro-Mechanical products.
Sunny Elevator has started import and export since 2012.
We have experience in exporting all kinds of elevator parts and complete elevator to 80 countries all over the world.
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won't break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.

---
