2. Color screen
3. Dual axis compensator
4. English operating system
Hot selling advanced technology laser Total station made in China 800 relectorless ZTS421 total station for sale

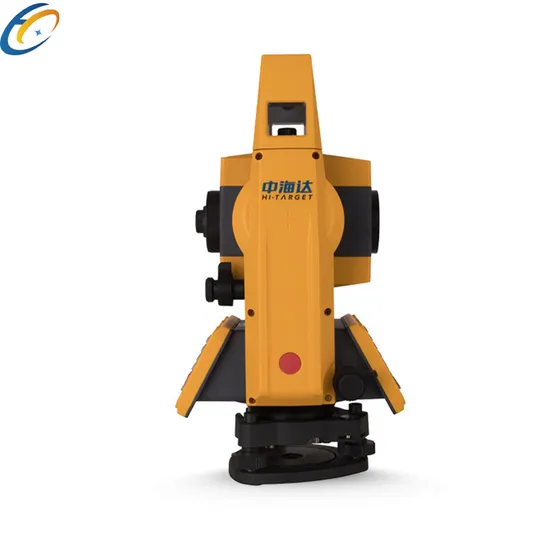

| Hi Target New Optical Structure Design Reflectorless 1000m Color Screen ZTS421L10 Total Station |
| Angle Measurement | |
| Measurement Method: | Absolute Encoding |
| Minimum Readout: | 1″ |
| Accuracy | 2" |
| Distance Measurement (with Reflector) | |
| Single prism (General/Good Atmosphere) | 5000m/6000m |
| Accuracy (Fine/Quick/Tracking) | 2mm + 2ppm |
| Measuring Time (Repeat/Tracking) | 0.5s/0.3s |
| Distance Measurement (Reflectorless) | |
| Range (The target is Kodak white board with reflect rate of 90%) | 1000M |
| Accuracy (It may change according to the different reflector conditions) | 3mm+2ppm |
| Measuring Time | 1s |
| Telescope | |
| Magnification | 30X |
| Field of View | 1°30′ (2.7m at 100m) |
| Minimum Focusing Distance | 1.5m |
| Reticle | Light up |
| Compensator | |
| System | Dual-axis liquid tilt sensor |
| Working Range | ±3′ |
| Setting Accuracy | 1″ |
| Communication | |
| Interface | Standard RS232 |
| Internal Data Memory | Approx. 20,000 Points/Standard USB flash drive |
| Wireless communication | Bluetooth |
| Operation | |
| Operation system | English Real-time Operating System |
| Display | 2.8-inch and 240*320 pixels high-brightness color display |
| Keyboard | 2 sides Alphanumeric backlit crystal keyboard |
| Laser Plummet | |
| Type | Laser point, 4 brightness levels adjustment / Optical plummet (optional) |
| Power Supply | |
| Battery Type | Rechargeable high-energy lithium battery (Type-C for direct charging) |
| Voltage/Capacity | 7.4v, 3000mAh |
| Operating Time | 18-hour (30-second measurement of new battery with 25°C), 36-hour continuous angle measuring |
| Measuring Times | Approx. 30000 times |
| Environmental | |
| Operating Temperature | -20ºC ~+50ºC( -4ºF to +122ºF) |
| Storage Temperature | -40ºC ~+70ºC(-40ºF to +158ºF) |
| Temperature and Air Pressure Input | Automatic sensor |
| Dust&Water Proof (IEC60529 Standard)/Humidity | IP55 |
Our services: 1.Any inquiries will be replied within 12 hours.
2.All our products have one year warranty, And we sure the products will be free from maintenance within warranty period.
3.All products will have been strictly quality checked in factory before sending out.
4.we can providing instrument technology training Packaging & Shipping We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS,China Air Post.
You can also choose your own shipping forwarder. About payment: Generally, we accept Trade Assurance, Irrevocable LC at sight, Advance T/T, Escrow and West union.If you prefer other payment terms, please let us know.
