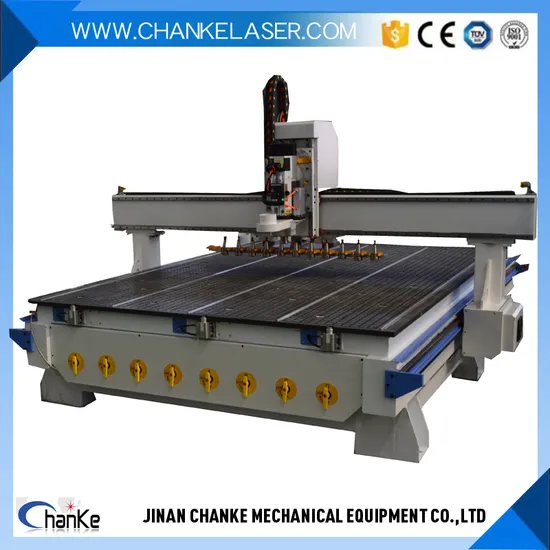

1325 New Design Popular Quality Woodworking Atc CNC Router Machine Wooden Doors Making Machine

Product Description

Product description 1. March 3 control system / NC studio control system or as customer suggestion
2. With 9.0 HQD air cooling spindle
3. Hiwin 25 square guide rails.
4. 11kw Delta inverter
5. Tool sensor
6. Full xinjie brand Servo motor or leadshine servo motor with reducer and Z axis contracting brake.
7. Vacuum and T-slot work table combine with 7.5kw vacuum pump
8. And it adopts a more advance XYZ Auto-oil-feeding system.
9. Heavy duty type machine bed and gantry for stable working.
10, 260mm diameter rotary or as customer choice
Machine parameters

Model	chanke-1325 ATC cnc router
X, Y Working size	1300*2500mm
Z feed Height	200mm/300mm
Table Surface	Vacuum table+ T solt
X, Y Structure	Rack and Pinion, Taiwan 25 Linear Square Guide Rail
Max. Power Consumption	(Without spindle) 2.0Kw
Max. Rapid Travel Rate	35000mm/min
Max. Working Speed	25000mm/min
Spindle Power	9 KW HQD air cooling spindle
Spindle Speed	0-24000RPM
Drive Motors	xinjie brand servo motor or leadshine servo motor
Working Voltage:	AC 380V /50/60Hz
Command Language	G code
Control System	SYNTEC 11MA/march 3 /NC studuio
X,Y,Z repositioning Accuracy	±0.01mm
X,Y Resolution	<0.01mm
Software	Artcam
Running Temperature	0 degree - 45 degree
Relative Humidity	30% - 75%

3. Applicable materials of cnc router wood price
1) Furniture: plate, office furniture, doors, cabinets.
2) Wood products: speakers, games cabinets, computer tables, sewing machines,
musical instruments.
3) Board processing: insulation, plastic chemical components, PCB, car body,
bowling track, ABS, PP, PE, etc.

4) Decoration: Acrylic, PVC, MDF, glass, plastic and soft metals such as copper
and aluminum.

4. How to Order Our Machine?

Before we can recommend you the best suitable machine, please kindly tell us:
1) What materials will you work on?
2) What is your Max.size of your processing materials? ( Length & Width )
3) Do you mainly engrave or cut? If cut,What is your Max.cutting thickness?
4) Does your materials are cylinder? If YES, what's the Max. Diameter of it?
5) If it is possible, could you send us your product samples' picture? It will
help us better to understand.
5. Trade Items of Machine

MOQ	1 set
Package	Standard Plywood Box
Delivery Terms	FOB, CIF, EXW, Door to Door ect.
Delivery Time	15 working days after receiving payment
Payment Type	T/T, Paypal, Western Union and others
Supply Ability	200 sets/month
Port	Qingdao, China.

6. Packing of Machine
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.


7. Guarantee & service of Machine
Guarantee:
Two years quality guaranty, the machine with main parts(excluding the
consumables) shall be changed free of charge when if any problem during the warranty period.
Service: ( Provide whole life technical support, 24h online )
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs, after everything is ready, we would tell you everything goes well here;
After sale:
1) We would provide English Version working manual.
2) If you have any questions during using and maintaining, our engineers who could speak very good English would answer you online or by calls.
3) Machine warranty is one year. So if your machine has any unintentionall damages, we would provide parts for free.
4) If your machine has big problems if by any chance, our engineers would arrive there to debug and fix.
5) Could be remote control if needed.

---
