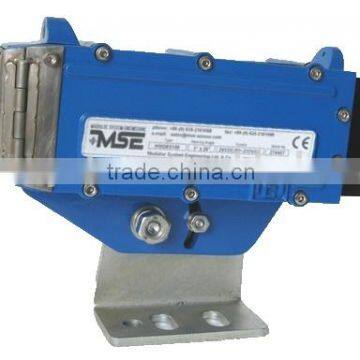

Long Range Control Hot Metal Detector
General Description
The MSE-HMD85 Hot Metal Detector is a fully digital “All-in–One” Hot Metal Detector uniquely incorporating a bar display showing the % IR input signal relative to the pre-set threshold as well as programmable thresholds and response times via simple programming switch action. This and the universal connection format means it provides the user with one universal Detector that can be used throughout the mill. The MSE-HMD85 Hot Metal Detector is the economical choice. Now there is no need to stock various Detectors for each location. Costly multiple inventory can be replaced by one Detector.
Rear Bar Display
The rear bar display allows the user to clearly establish the amount of received IR both from the background metalwork and the bar being detected and thereby establishing the correct trip level required. This display also allows the user to align the Detector from a low energy source such as a flashlight, which normally would be insufficient to switch the Detector. Adjustment of both the threshold and the response time is also clearly defined by this bar.
Housing Specifications
Housing: Aluminum AL6, Oven baked blue paint
Housing Rating: IEC IP66, DIN, 89011
Weight w/o Cable: 1.9 Kg (4.2lb)
Connector: IP66 with connected Plug/Socket
Cable Length: 1.5 M Standard up to 15 M available
Cooling: Air Cooled & Air Purged or Water Cooled & Air Purged
General Specification
Lens F.O.V.
(Filed of View)
| 0.5° x 25° Rectangular Slit
|
Sensing Element
| InGaAs Sensor
|
Power Indication
| Blue LED
|
Function Indication
| Top & Bottom Yellow LED's
|
Remote Self-Check
| Middle Yellow LED's
|
Min/Max I.R. Threshold
Settings
| Adjustable from 270°C via Programming Switch
|
Response Time
| 1 ms to 250 ms, via Programming Switch
|
Supply Voltage
| Standard:
80 - 240 VAC, 50/60 or 24 VDC ± 10%
|
Power Consumption
| 5 W
|
Operating Temperature
| 1. -20°C to +50°C without Air Cooling
2. -20°C to +60°C with Air Cooling
3. +2°C to +70°C with 20°C Water Cooling
4. up to 80°C with Heat Shield
|
Output (#1)
| Cradle Relay Output, SPNO, 240 VAC, 7A with 20 ms Response Time.
|
Output (#2)
| Reed Relay Output, (OPTION) SPNO,
240 VAC, 0.5A with 2 ms Response Time.
|
Output (#3 & #4)
| NPN and PNP Outputs, N.O., 500 mA, 45 VDC, 2A Peak.
|
>>
