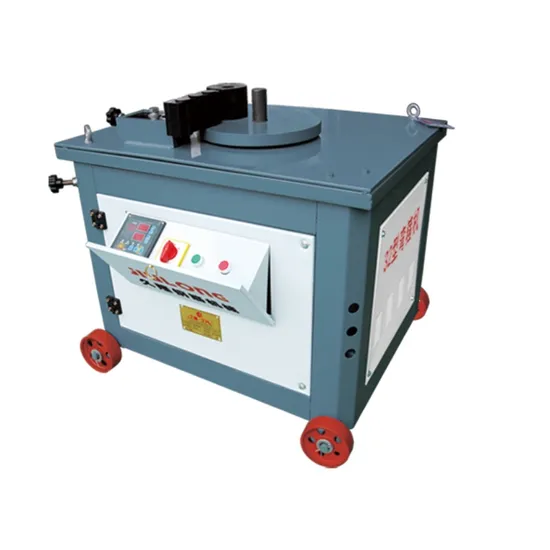

Wholesale of New Design Manual Steel Bar Stirrup Bending Machine

Product Description

Product Description
Product Parameters

Type	GF20	GF25	GF25CNC	GF25 External adjust	GF25 High speed	GF32	GF32 CNC
Bending diameter	Φ4-Φ20mm	Φ4-Φ25mm	Φ4-Φ25mm	Φ4-Φ25mm	Φ4-Φ25mm	Φ4-Φ32mm	Φ4-Φ32mm
Motor power	2.2kw	3kw	3kw	3kw	3kw	4kw	4kw
Motor speed	1440 r./ min	1440 r./ min	1440 r./ min	1440 r./ min	1440 r./ min	1440 r./ min	1440 r./ min
Bending speed	25-35r/min	25-30r/min	25-30r/min	25-30r/min	25-30r/min	25-30r/min	25-30r/min
Dimension	870 *600 *900 mm	870 *600 *900 mm	870 *600 *900 mm	880 *600 *900 mm	880 *600 *900 mm	960 *860 *1000 mm	960 *860 *1000 mm
Weight	120KG	150KG	150KG	160KG	180KG	270KG	270KG
Input voltage	Three phase 380VAC 415VAC or customized
Color	Red, yellow,gray,blue or customized

Our Advantages 1.This machine is very efficient, can replace the steel worker of 20-30.
2.the utility of the equipment is strong, only one can operate and it can save a lot of labor
3.Equipment maintenance costs and energy costs are very low.
4.Line specification, easy to maintain, easy to maintain.
5.Dual use on one machine: for steel bar and stirrup, Max bending diameter 32mm.
Company Profile
Changge Kowloon Machinery Manufacturing is a collection of scientific research, development, manufacturing, sales and service as one of professional construction machinery manufacturers. Established in 2013, factory area 28000 square meters, with 57 employees, has CE and ISO 9001 Certifications. We always produce our products to higher standards than the industry and are known for the quality of our products. The main products are: Rebar cutting machine, Rebar bending machine, Plate compactor, Tamping rammer, Polishing machine, Road roller, Forklift and other Mechanical equipment. Products are exported to Southeast Asia, Central Asia, Eastern Europe, Africa, South America, Russia and other dozens of countries. Until now, nearly 120, 000 sets of our machines are servicing the overseas construction sites now. We not only provide lightweight construction machinery, but also help you solve construction problems, provide you and your company with great service, unbeatable price and real value! We invite you to become a member of our growing family of customers, warmly welcome your coming! Certifications
FAQ Q: What's the MOQ?
A:1 Sets.
Q: What about the shipment?
A:Shipped in 7days after payment.
Q: What's the usually delivery terms?
A:FOB,CNF,CIF,EXW will be ok.
Q: What's your packing?
A: lron frame and Plywood cases or carton.
Q: What's the pavment terms?
A: We accept Cash,T/T,L/C.
Q: What's your delivery port?
A: Usually Qingdao Port, Tianjin, Shanghai or other port of China.
Q: Can we place OEM orders?
A:Yes, OEM orders are acceptable, We can manufacture machines according to your requirements.
Q: Does machines have warranty period?
A:Yes, our machine with one year warranty period for main parts, quick parts are excluded.
Q: Does machine have certificates?
A: We have got the CE certification. And we are the profetional construction manufacturer, we can guarantee the quality.

---
