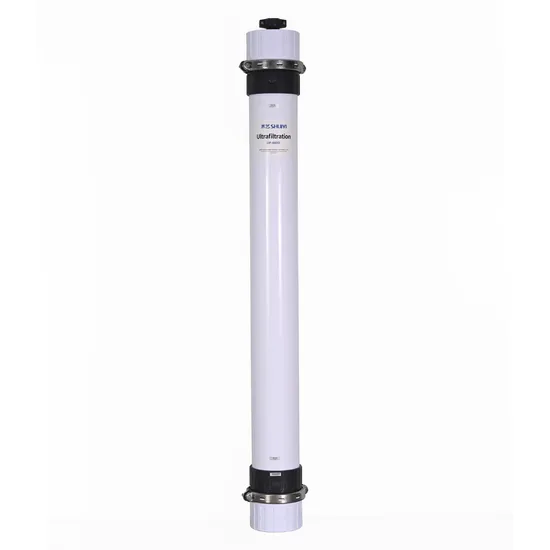

SHUIYI UP-1060H to Replace of Hydranautics Max 60 UF Membrane

Product Description

About Shuiyi:
SHUIYI which is one of the professional and largest membrane providers in the water treatment industry in China.
The mainly products we supplied include:
MBR Membrane
Hollow Fiber (HF) Pressurized Ultra-filtration (UF) modules
Hollow Fiber (HF) Submerged Ultra-filtration (UF) elements
Reverse Osmose membrane element
Nano filtration membrane element

Introduction
SHUIYI UltrafilTM series pressurized ultrafiltration membrane adopts PVDF hollow fiber membrane prepared by SHUIYI' unique hydrophilic modification process, with the characteristics of high flux, super hydrophilicity, high chemical cleaning resistance and anti-fouling.
Features Optimized fluid division to reduce energy consumption; Advanced centrifugal seal process guarantees long service life; Standardized modularization design for easy installment and replacement; Outside-in design provides a larger filter area; Unique production mechanism and microstructure design improve the anti-fouling property.
Specifications

Membrane Specifications	Model	UP-860D	UP-880D	UP-660	UP-860	UP-880
	Material	PVDF	PVDF	PVDF	PVDF	PVDF
	Active Membrane Area	52 m2	77 m2	35 m2	55 m2	75 m2
	Nominal Pore Size	0.03 μm
	Hollow Fiber Inner/Outer Diameter	0.7/1.3 mm
Membrane Module Specifications	Model Dimensions D×L	Ф225×1860 mm	Ф225×2360 mm	Ф160×1814 mm	Ф225×1757 mm	Ф225×2257 mm
	Inlet & Outlet Connection Size	DN50	DN50	DN40	DN50	DN50
Material	Housing Material	U-PVC
	End Encapsulation Material	Epoxy resin/Polyurethane
Weight	Membrane Weight (Wet)	75 kg	92 kg	42 kg	75 kg	92 kg
Operation Conditions	Temperature	1~40ºC
	Turbidity	≤ 300 NTU
	pH	2-10
	Type of Filtration	Dead-end or Cross-flow filtering
	Max. NaClO concentration	5,000ppm
	Design Flux	30~120 L/ m2·pc
	Air Scour-Feed Pressure	4~12 Nm3/h·pc
	Max. Inlet Pressure	0.3 MPa
	Max. Transmembrane Pressure	0.2 MPa
Quality of Permeate Water	Turbidity	≤ 0.1 NTU
	SDI15	≤ 3

Applications Groundwater/surface water purification Reclaimed water reuse Pretreatment of RO system Pretreatment of seawater desalination Beverage clarification and turbidity removal

---
