Top Sale Customized Glass Jacketed Reactor for Laboratory Use with Competitive Price

Product Description

Product Description

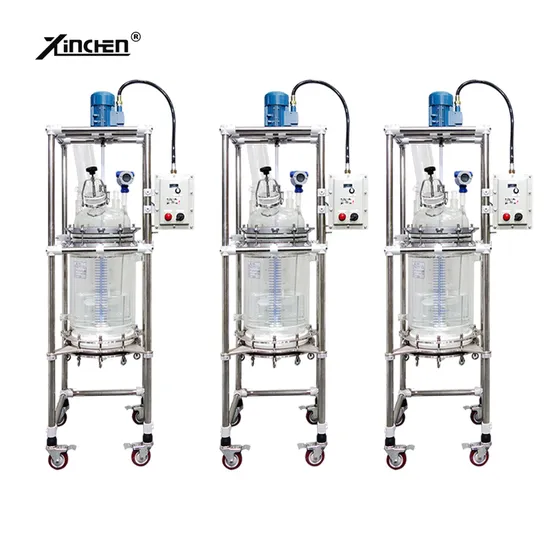

The glass reactor can be designed to be double layer glass reactor or triple jacketed reactor .
The reaction solvent can be put into the inner layer to do stirring , inter-layer can be connected with cold and heat source to do circulating heating or cooling reaction.
Under the setting of constant temperature , in sealed glass reaction , stirring reaction can be carried out at atmospheric pressure or negative pressure conditions according to the operating , and also can carry out reflux and distillation of the reaction solution.
This machine is an ideal production equipment for the modern fine chemical , pharmaceutical and biological synthesis of new materials.
Products feature
1. The whole stainless steel supporting frame, 4-6 necks on the reactor lid, such as distillation & reflux , liquid feeding , temp sensor , stirring & mixing , etc .2. Glass reactor is made of G3.3 high borosilicate glass , with good chemical and physical properties .3. Alloy steel mechanical seal,magnetic fluid seal, PTFE connector , to maintain a high precision seal in the working condition.4. With PT100 sensor probe, high precision temperature measurement , small errors and high efficiency .5.AC reducer motor, strong torsion , no noise , etc.6.PTFE stirring paddle, suitable for low or high viscosity liquid stirring and mixing.7.PTFE discharge valve, movable interface , discharging and flushing completely and quickly.8.Can be according to customer requirements, such sand core filter , PH meter , Ex motor , Ex control box and Ex temp.
Product Parameters

Mode	XC-20L
Glass Material	G3.3
Neck No.on lid	6
Lid diameter	265mm
Place of Origin	Jiangsu, China
Applicable Industries	Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Other
Brand Name	XINCHEN
Power	140W
Product Name	Glass reactor
Capacity	20L
Heating method	Heat-transfer Oil Heating
Warranty	1 year
Jacket volume	6L
Vacuum Degree	-0.096MPa
Rotational speed(rpm)	50~600rmp
Other auxiliary equipments	Cool Chiller
Certification	CE ISO

Detailed Photos
FAQ
Delivery Time:* 10-15 days.Trade Terms: * FOB Shanghai/Ningbo/Guangzhou.* EXW , FOB ,CIF ,CFR, DDU, CIP are available.Technical Support* 24-hour technical support by email or by video.* Technical training service is provided to customers.Warranty * 12 months guarantee for whole machine.* Lifetime service for all sold equipment.Customized Service * Professional system solutions can be provided according to customer's drawings or requirements.* We have R&D team and designers who can work for customer's project.* Drawings, production and testing will be conducted under customer's inspection.* OEM, ODM products are supplied.

---
