| US$39,999.00-9,999,999.00 | 1 Set (MOQ) |
| DL | DuoLing |
| J | Jaw Crusher |
| C | Cone Crusher |
| S | Screening |
| F | Feeder |
| I | Impact Crusher |
| V | Vertical Shaft Impact Crusher |
| 600 | Daily output 600 T ( 8 working- hours everyday) |
| 1000 | Daily output 1000 T ( 8 working- hours everyday) |
| 2000 | Daily output ~2000 T ( 8 working- hours everyday) |
| Series | Model | Equipment | Feed Opening (mm) | CSS (mm) | Working Area (mm) | Deck | Max.Feed (mm) | Capacity (t/h) | Dimensions | Weight (t) | |
| Work | Transport | ||||||||||
| DL-600 | DL-J600 | J-600 | 500*750 | 50-120 | - | - | 425 | 50-150 | 9070(L) 3440(W) 4725(H) | 9070(L) 3015(W) 4225(H) | 25 |
| F-600 | - | - | 3700*900 | - | 450 | 200 | |||||
| Frame | Semi-trailer, single shaft dual wheel, mechanical support, suspension, brake | ||||||||||
| Max.speed:30KM/H (smooth road) | |||||||||||
| DL-I/S600 | I-600 | 540*1170 | 20-40 | - | - | 350 | 70-120 | 15125(L) 4345(W) 5995(H) | 14870(L) 3445(W) 4335(H) | 37 | |
| S-600 | - | - | 4280*1350 | 3 | 120 | 70-140 | |||||
| Frame | Semi-trailer, double shaft dual wheel, mechanical support, suspension, brake | ||||||||||
| Max.speed:30KM/H (smooth road) | |||||||||||
| DL-1000 | DL-J1000 | J-1000 | 600*900 | 75-180 | - | - | 500 | 65-190 | 9750(L) 3845(W) 4645(H) | 10010(L) 3100(W) 4200(H) | 33.5 |
| F-1000 | - | - | 3700*1050 | - | 500 | 300 | |||||
| Frame | Semi-trailer, double shaft dual wheel, mechanical support, suspension, brake | ||||||||||
| Max.speed:30KM/H (smooth road) | |||||||||||
| DL-I/S1000 | I-1000 | 490*1520 | 20-40 | - | - | 350 | 100-160 | 14820(L) 7455(W) 5520(H) | 14300(L) 4330/4755(W) 4160/4335(H) | 48 | |
| S-1000 | - | - | 3700*900 | 3 | 120 | 80-230 | |||||
| Frame | Semi-trailer, triple shaft dual wheel, mechanical support, suspension, brake | ||||||||||
| Max.speed:30KM/H (smooth road) | |||||||||||
| DL-C/S1000 | C-1000 | 54*190 | 6-38 | - | - | 43-152 | 55-245 | 14685/14840(L) 4125/7455(W) 5730/5713(H) | 13640/13870(L) 3890/4330(W) 4330/4320(H) | 41/42 | |
| S-1000 | - | - | 4880*1600 | 2/3 | 120 | 80-230 | |||||
| Frame | Semi-trailer, triple shaft dual wheel, mechanical support, suspension, brake | ||||||||||
| Max.speed:30KM/H (smooth road) | |||||||||||
| DL-2000 | DL-J2000 | J-2000 | 800*1100 | 90-220 | - | - | 650 | 140-320 | 11830(L) 5000(W) 5365(H) | 12445(L) 3380(W) 4350(H) | 58.5 |
| F-2000 | - | - | 4300*1220 | - | 650 | 400 | |||||
| Frame | Semi-trailer, triple shaft dual wheel, mechanical support, suspension, brake | ||||||||||
| Max.speed:30KM/H (smooth road) | |||||||||||
| DL-C2000 | C-2000 | 25-230 | 6-45 | - | - | 20-184 | 80-440 | 9700(L) 3600(W) 4830(H) | 9700(L) 3600(W) 4230(H) | 32.5 | |
| Frame | Semi-trailer, double shaft dual wheel, mechanical support, suspension, brake | ||||||||||
| Max.speed:30KM/H (smooth road) | |||||||||||

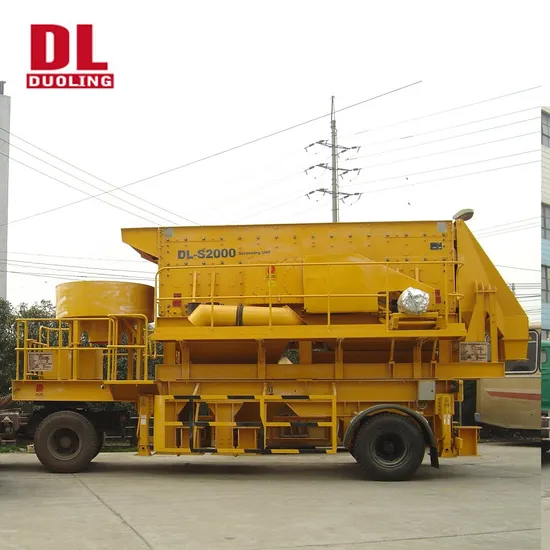

| DL-S2000 | S-2000 | - | - | 4880*1562 | 3 | 200 | 200-525 | 10210(L) 3550(W) 4285(H) | 8750(L) 3550(W) 4200(H) | 18.5 | |
| Frame | Semi-trailer, single shaft dual wheel, mechanical support, suspension, brake | ||||||||||
| Max.speed:30KM/H (smooth road) | |||||||||||
