Dome valve for pneumatic conveying

Product Details

Product Description

Product Description

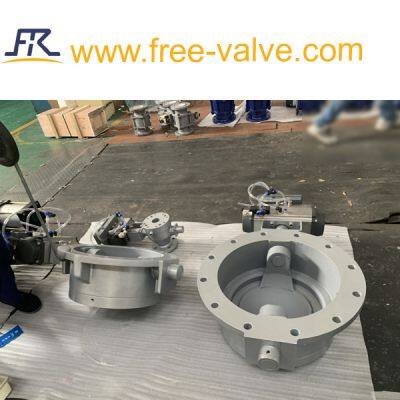

Pneumatic Dome Valve
FREE-VALVE’ brand dome valves for pneumatic conveying are designed for pneumatic ash conveying system.Dome valve is unique in its ability to open and close with a tight pressure seal in environment where abrasive material are passing.Dome valve can achieve operating reliability in severe applications .
Features
1.Simple valve structure and operation principle ,makes the dome valve suitable for pneumatic conveying system .
2.Tight sealing performance as Inflatable seal self-compensates for wear as the valve is used.The inflatable seal provides continuous wear compensation.
3.Valve can open and close through a static or moving column of material.
4.Easy to maintenance and replacement.
5.Different valve body materials are optional depending on customer need.
Technical Specification:
1) Size Range: NPS4~NPS16,DN50~DN400
2) Pressure Range: Class 150 /PN6 /PN10
3) Applicable Temperature: 0~80℃
4) Connection Type: Flange
5) Sealing material: Inflatable seats /Hard seats
6) Pressure test:GB/T13927, API598
7) Face to Face: GB/T12221, ASME B16.10
8) Valve body : GB/T12224,ASME B16.34
9）Operating Type: Pneumatic
Application:
FREE-VALVE brand Pneumatic operated dome valves are suitable for abrasive material with abrasive particles,such as power plants ,ash ,mineral processing ,food industry ,biomass ,steel industry,material handling ,pharmacy etc .
Model:FRYDF-10C
Price:1000-5000USD/set
Origin:China
Payment terms:TT,LC
Price terms:FOB,CIF.FCA,CFR
Delivery time:30 days
Brand:FREE-VALVE
Wechat ID:Free_Valve
Email:marketing@free-valve.com

---
